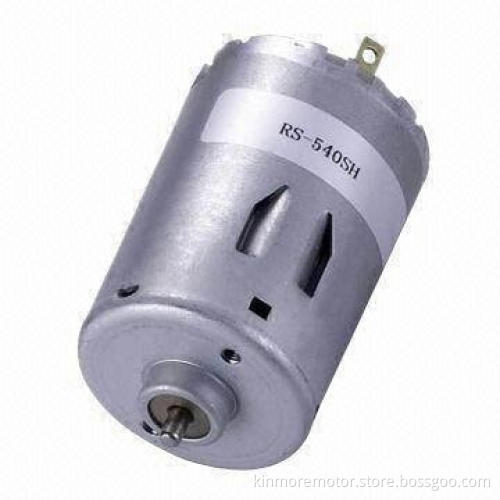

12V DC Motor High Speed Ideal for Children's Car and Vacuum Cleaner, Sized 35.8 x 50mm Housing
  • 12V DC Motor High Speed Ideal for Children's Car and Vacuum Cleaner, Sized 35.8 x 50mm Housing
12V DC Motor High Speed Ideal for Children's Car and Vacuum Cleaner, Sized 35.8 x 50mm Housing

12V DC Motor High Speed Ideal for Children's Car and Vacuum Cleaner, Sized 35.8 x 50mm Housing

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Motor housing (D x L): 35.8 x 50mm
    • Material: SECD
    • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling available)
    • Way of commutation: carbon leaf brush system
    • Structure: 2 poles starter and 3 slots armature
    • Insulation: class F magnet wire
    • Rotation: CW/CCW, reversible
  • Performance:
    • Measuring conditions
      • Rated voltage: 12V DC
      • Motor Position: to be measured with motor horizontallyheld.
      • Environmental temperature 25±10.
      • Environmental humidity 65%±20%RH
    • Electrical characteristics:
      • At no load
      • Speed: 19500 rpm±10%
      • Current: 0.95 A(max 1.43A)
      • At Max Efficiency
      • 1.Torque: 293.9 g.cm
      • Speed: 16633 rpm±10%
      • Current: 5.51 A(max 8.3A)
      • At Stall
      • Torque: 1998.7 g.cm
      • Current: 32 A(max 47.96A)
    • Mechanical characteristics:ul>
    • End Play 0.05^0.05mm.
    • Operating temperatures: 0 - +45
    • Options:
      • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
  • Motor housing (D x L): 35.8 x 50mm
  • Material: SECD
  • Shaft: Ø3.175mm carbon steel (nickel coated, D-shape orknurling available)
  • Way of commutation: carbon leaf brush system
  • Structure: 2 poles starter and 3 slots armature
  • Insulation: class F magnet wire
  • Rotation: CW/CCW, reversible
  • Measuring conditions
    • Rated voltage: 12V DC
    • Motor Position: to be measured with motor horizontallyheld.
    • Environmental temperature 25±10.
    • Environmental humidity 65%±20%RH
  • Electrical characteristics:
    • At no load
    • Speed: 19500 rpm±10%
    • Current: 0.95 A(max 1.43A)
    • At Max Efficiency
    • 1.Torque: 293.9 g.cm
    • Speed: 16633 rpm±10%
    • Current: 5.51 A(max 8.3A)
    • At Stall
    • Torque: 1998.7 g.cm
    • Current: 32 A(max 47.96A)
  • Mechanical characteristics:ul>
  • End Play 0.05^0.05mm.
  • Operating temperatures: 0 - +45
  • Options:
    • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
  • Rated voltage: 12V DC
  • Motor Position: to be measured with motor horizontallyheld.
  • Environmental temperature 25±10.
  • Environmental humidity 65%±20%RH
  • At no load
  • Speed: 19500 rpm±10%
  • Current: 0.95 A(max 1.43A)
  • At Max Efficiency
  • 1.Torque: 293.9 g.cm
  • Speed: 16633 rpm±10%
  • Current: 5.51 A(max 8.3A)
  • At Stall
  • Torque: 1998.7 g.cm
  • Current: 32 A(max 47.96A)
  • Shaft length, ball bearing, technical data like voltage, speed,torque, EMI/EMC suppression (optional)
