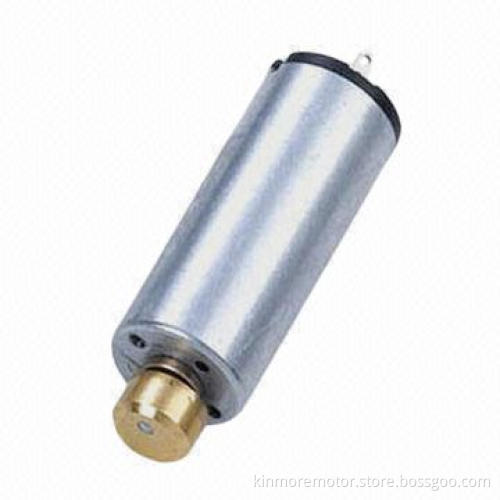

1.5V DC Small Vibration Motor with 10,800rpm Speed, for Massagers, RoHS Mark

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C

Product Description

Specifications:

Technical performance data:

Applications: massagers

Motor housing (D x L): 12 x 20mm (material: SECD)

Shaft (diameter): 1.5mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibration motor

Rated voltage: 1.5V DC

At on load:

At stall:

Customized data requirements are welcomed for our engineer'sevaluation

Torque: R7 x 5 vibrators

Speed: 10,800rpm

Current: 0.8A

Current: 2.3A (maximum)
