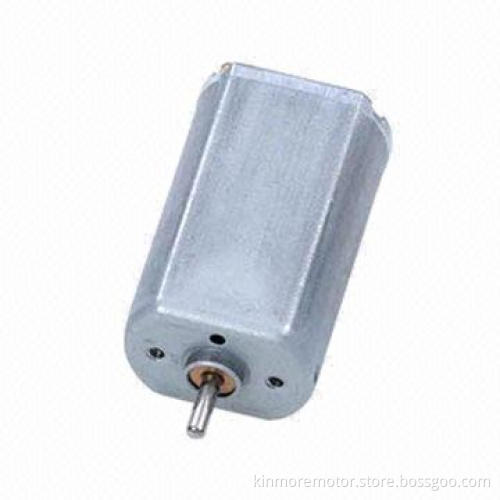

2.3V DC Motor, 4000rpm for RC Mode/Toothbrush/Electric Shaver, 2-pole Stator and 3-slot Armature

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Motor housing (D x flat x L): 20.2 x 15.4 x 25.0mm, SECD

Shaft (diameter): 2.0mm carbon steel, nickel coating

Way of commutation: carbon brush

Structure: 2-pole stator and 3-slot armature

Rotation: CW/CCW and reversible

Options: extended shaft on the end cap side, metal brushes andP magnet, EMI/EMC Suppression

Technical performance data:

Measuring conditions:
- Rated voltage: 2.3V DC
- Motor position: to be measured with motor horizontallyheld
- Environmental temperatures: 5 to 35°C
- Environmental humidity range: 40 to 85% RH
- Electrical characteristics (at initial stage after 30 secondsrun-in):
- At no load:
  - Speed: 4000 ±10% rpm
  - Current: 70mA
- At on load:
  - Torque: 13.5g.cm
  - Speed: 2500 ±10%rpm
  - Current: 300mA
- At stall:
  - Torque: 40g.cm
  - Current: 760mA
- Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
Mechanical characteristics:
- Dimension drawing: see outline
- End play: 0.05 to 0.5mm
- Operating temperatures: -10 to 60°C

Measuring conditions:

Rated voltage: 2.3V DC
Motor position: to be measured with motor horizontallyheld
Environmental temperatures: 5 to 35°C
Environmental humidity range: 40 to 85% RH
Electrical characteristics (at initial stage after 30 secondsrun-in):
At no load:
- Speed: 4000 ±10% rpm
- Current: 70mA
At on load:
- Torque: 13.5g.cm
- Speed: 2500 ±10%rpm
- Current: 300mA
At stall:
- Torque: 40g.cm
- Current: 760mA
Direction of rotation: CCW (counter-clockwise when viewing fromthe output shaft end with positive voltage applied to positiveterminal)
