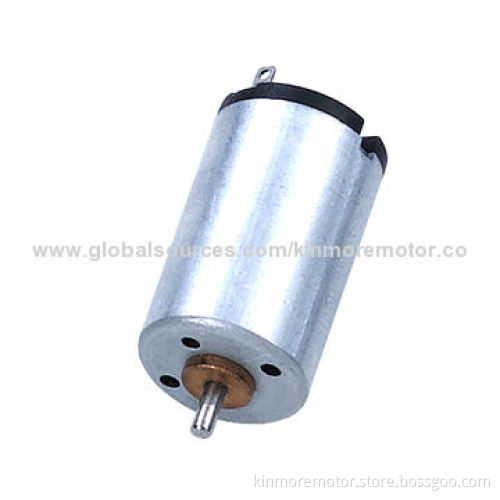

2.5V Electric DC Motor with Precious Metal Brush

2.5V Electric DC Motor with Precious Metal Brush

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

NdFeB magnet
Precious metal brush
Stainless steel shaft
Oil-impregnated bearing

Specifications:

Diameter of the motor: 12mm
Body length: 15mm
Diameter of the shaft: 1.5mm
Weight: 6.5g (approx)
Voltage:
- Operating range: 1.0-3.0V
- Nominal voltage: 2.5V
No load:
- Speed: 19,500rpm
- Current: 0.13A
At maximum efficiency:
- Speed: 12,300rpm
- Current: 0.32A
- Torque: 0.2mNm/2g.cm
- Output: 0.25W
- Stall torque: 0.56mNm/5.6g.cm
Current: 0.72A
Direction of rotation: CW/CCW
End play: 0.05-0.35mm
Note: above is just for customers' reference, customized specifications are welcomed

Typical applications:

Door lock actuator
Tooth brush
Camera
Toy

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

NdFeB magnet

Precious metal brush

Stainless steel shaft

Oil-impregnated bearing

Diameter of the motor: 12mm

Body length: 15mm

Diameter of the shaft: 1.5mm

Weight: 6.5g (approx)

Voltage:

Operating range: 1.0-3.0V
Nominal voltage: 2.5V

No load:

Speed: 19,500rpm
Current: 0.13A

At maximum efficiency:

Speed: 12,300rpm
Current: 0.32A
Torque: 0.2mNm/2g.cm
Output: 0.25W
Stall torque: 0.56mNm/5.6g.cm

Current: 0.72A

Direction of rotation: CW/CCW

End play: 0.05-0.35mm

Note: above is just for customers' reference, customized specifications are welcomed

Operating range: 1.0-3.0V

Nominal voltage: 2.5V

Speed: 19,500rpm

Current: 0.13A

Speed: 12,300rpm

Current: 0.32A

Torque: 0.2mNm/2g.cm

Output: 0.25W

Stall torque: 0.56mNm/5.6g.cm

Door lock actuator

Tooth brush

Camera

Toy

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire

OEM orders and customized designs are accepted

With the RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan
