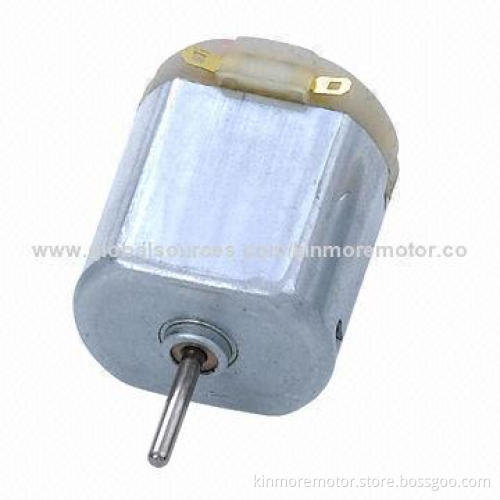

High-quality 12V/8,700rpm Brush Door Lock Actuator DC Motor with SECC Housing, 2418.327mm

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Dimensions of the motor:

Diameter: 24.2mm
Length: 27.0mm
Height: 18.3mm
Shaft diameter: 2.0mm

Performance of the motor:

Operating voltage range: 6.0-9.0V
Nominal voltage: 12V
No load: speed: 8,7 00rpm
Current: 0.05A

At maximum efficiency:

Speed: 7,330rpm
Current: 0.27A
Torque: 2.47m/Nm/25.2g.cm
Output: 1.9W

Stall:

Torque: 15.7m/Nm/160.1g.cm
Current: 0.63A
Direction of rotation: CW/CCW
End play: 0.05-0.45mm

Features:

Plastic end cap
Carbon brush
Carbon steel shaft
Oil-impregnated bearing
Leaf brush system

Typical applications:

Rearview mirror
Headlamp adjuster
Mirror adjuster
-RC model/toy

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Note: above is just for customers' reference, customized specifications are welcomed

Diameter: 24.2mm

Length: 27.0mm

Height: 18.3mm

Shaft diameter: 2.0mm

Operating voltage range: 6.0-9.0V

Nominal voltage: 12V

No load: speed: 8,7 00rpm

Current: 0.05A

Speed: 7,330rpm

Current: 0.27A

Torque: 2.47m/Nm/25.2g.cm

Output: 1.9W

Torque: 15.7m/Nm/160.1g.cm

Current: 0.63A

Direction of rotation: CW/CCW

End play: 0.05-0.45mm

Plastic end cap

Carbon brush

Carbon steel shaft

Oil-impregnated bearing

Leaf brush system

Rearview mirror

Headlamp adjuster

Mirror adjuster

-RC model/toy

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire
