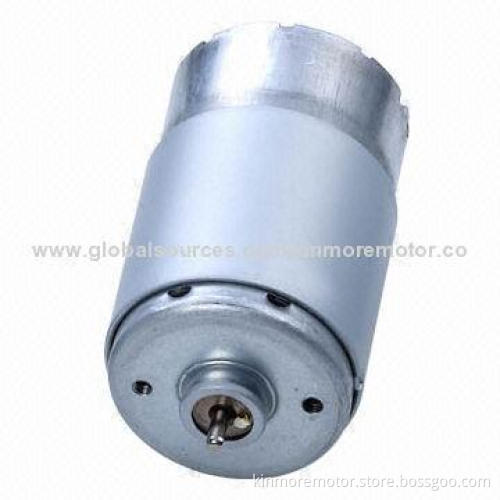

230V High-rpm and Torque Electric DC Motor for Blender, Coffee Machine
  • 230V High-rpm and Torque Electric DC Motor for Blender, Coffee Machine
230V High-rpm and Torque Electric DC Motor for Blender, Coffee Machine

230V High-rpm and Torque Electric DC Motor for Blender, Coffee Machine

Get Latest Price
Payment Type:
T/T or L/C at Sight
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T or L/C at Sight
Product Description
Product Description
  • Specifications:
    • Diameter: 36mm
    • Body length: 60mm
    • Shaft diameter: 3.175mm
    • Working voltage: 230V
    • No loading:
      • Speed: 18,000rpm
      • Current: 0.09A
    • On loading:
      • Speed: 14,440rpm
      • Current: 0.35A
    • Rated loading: 38.76mNm
    • Stall torque: 196mNm
    • Stall current: 1.4A
    • Working voltage: 230V
    • Above is just for customers' reference, customized specifications are welcomed
    • Product range:
      • Main products: motors, gear motors, DC motors, brush DC motors, spur gear motors, micro motors and vibration motors
    • Product size: Ø6 to 66mm
    • Voltage: 1.5 to 42V DC
    • AC rectify: 100, 110, 220, 230 and 240V
    • Speed: 1 to 30,000rpm
    • Stall torque range: 5 to 30kg/cm
  • Construction of motor:
    • Two-pole stator
    • SR ferrite permanent magnet
    • 3, 5, 7, 8, 9 and 12 slots armature
    • Silicone steel lamination with epoxy coating
    • High-carbon steel shaft
    • Cu-Ag alloys commentator
    • Copper graphite brushes
    • Cu leaf brush commutation system
    • SECD round/flat-shaped housing
    • SECD end cap/PA66 and fiber end cap
    • Cylinder (self-aligning) sintered bush
    • 155° (class F) copper wire
  • Diameter: 36mm
  • Body length: 60mm
  • Shaft diameter: 3.175mm
  • Working voltage: 230V
  • No loading:
    • Speed: 18,000rpm
    • Current: 0.09A
  • On loading:
    • Speed: 14,440rpm
    • Current: 0.35A
  • Rated loading: 38.76mNm
  • Stall torque: 196mNm
  • Stall current: 1.4A
  • Working voltage: 230V
  • Above is just for customers' reference, customized specifications are welcomed
  • Product range:
    • Main products: motors, gear motors, DC motors, brush DC motors, spur gear motors, micro motors and vibration motors
  • Product size: Ø6 to 66mm
  • Voltage: 1.5 to 42V DC
  • AC rectify: 100, 110, 220, 230 and 240V
  • Speed: 1 to 30,000rpm
  • Stall torque range: 5 to 30kg/cm
  • Speed: 18,000rpm
  • Current: 0.09A
  • Speed: 14,440rpm
  • Current: 0.35A
  • Main products: motors, gear motors, DC motors, brush DC motors, spur gear motors, micro motors and vibration motors
  • Two-pole stator
  • SR ferrite permanent magnet
  • 3, 5, 7, 8, 9 and 12 slots armature
  • Silicone steel lamination with epoxy coating
  • High-carbon steel shaft
  • Cu-Ag alloys commentator
  • Copper graphite brushes
  • Cu leaf brush commutation system
  • SECD round/flat-shaped housing
  • SECD end cap/PA66 and fiber end cap
  • Cylinder (self-aligning) sintered bush
  • 155° (class F) copper wire
