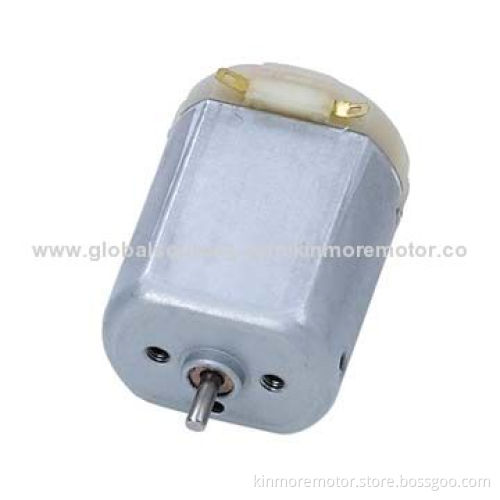

High-speed DC Motor with Low-noise, Long Lifespan for Door Locks, Windows, Vending Machines
  • High-speed DC Motor with Low-noise, Long Lifespan for Door Locks, Windows, Vending Machines
High-speed DC Motor with Low-noise, Long Lifespan for Door Locks, Windows, Vending Machines

High-speed DC Motor with Low-noise, Long Lifespan for Door Locks, Windows, Vending Machines

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Features:
    • Motor housing (D x F x L): Ø24.3 x 18.3 x 30.5mm
    • Material: SECD
    • Side female plug-in terminals
    • Shaft: 2.0mm carbon steel (nickel-coated)
    • Way of commutation: carbon brushes
    • Structure: 2-pole stators and 3-slot armature
    • Rotation: CW/CCW and reversible
    • EMC/EMI suppression (optional)
    • Plastic end cap
    • Ideal for car door locks, mirror and damper actuator
  • Technical data:
    • Rated voltage: 1.2V DC
    • At no loading:
      • Speed: 8,670rpm ±10%
      • Current: 0.73A (maximum 0.2A)
    • At maximum efficiency:
      • Speed: 6,560rpm ±10%
      • Current: 2.24A (maximum 1.1A)
      • Torque: 17.7gcm
    • At stall:
      • Current: 8.43A
      • Torque: 98gcm
  • Our service:
    • Optional EMI and EMC
    • Ball bearing in output side
    • EMI suppression
    • Low-cogging design
    • High-degree of protection
    • Small mechanical time constant
    • Resist intense vibrations
    • Zero axial gap
    • Low-noise design
    • Fast response (small Tm)
    • High-torque at low-speed
    • PTC protection
    • Phenolic resin base commutator
    • Epoxy coating armature
    • Lightweight and long lifespan
  • About us:
    • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
    • Product size range: 6 - 52mm, diameter
    • DC voltage range: 1.5 - 42V
    • AC rectify: 100, 110, 220, 230, 240V and more
    • Speed range: 1 - 30,000rpm
    • Stall torque range: 5g.cm - 30kg.cm
  • Motor housing (D x F x L): Ø24.3 x 18.3 x 30.5mm
  • Material: SECD
  • Side female plug-in terminals
  • Shaft: 2.0mm carbon steel (nickel-coated)
  • Way of commutation: carbon brushes
  • Structure: 2-pole stators and 3-slot armature
  • Rotation: CW/CCW and reversible
  • EMC/EMI suppression (optional)
  • Plastic end cap
  • Ideal for car door locks, mirror and damper actuator
  • Rated voltage: 1.2V DC
  • At no loading:
    • Speed: 8,670rpm ±10%
    • Current: 0.73A (maximum 0.2A)
  • At maximum efficiency:
    • Speed: 6,560rpm ±10%
    • Current: 2.24A (maximum 1.1A)
    • Torque: 17.7gcm
  • At stall:
    • Current: 8.43A
    • Torque: 98gcm
  • Speed: 8,670rpm ±10%
  • Current: 0.73A (maximum 0.2A)
  • Speed: 6,560rpm ±10%
  • Current: 2.24A (maximum 1.1A)
  • Torque: 17.7gcm
  • Current: 8.43A
  • Torque: 98gcm
  • Optional EMI and EMC
  • Ball bearing in output side
  • EMI suppression
  • Low-cogging design
  • High-degree of protection
  • Small mechanical time constant
  • Resist intense vibrations
  • Zero axial gap
  • Low-noise design
  • Fast response (small Tm)
  • High-torque at low-speed
  • PTC protection
  • Phenolic resin base commutator
  • Epoxy coating armature
  • Lightweight and long lifespan
  • Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
  • Product size range: 6 - 52mm, diameter
  • DC voltage range: 1.5 - 42V
  • AC rectify: 100, 110, 220, 230, 240V and more
  • Speed range: 1 - 30,000rpm
  • Stall torque range: 5g.cm - 30kg.cm
