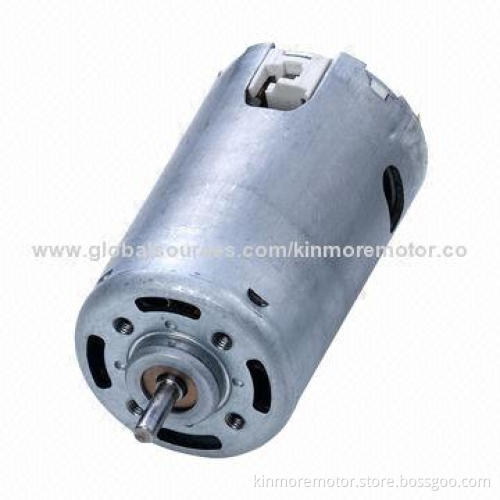

High-voltage Strong Power RS-9912H DC Power Tool Motor with 6.35mm Carbon Steel Shaft

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or L/C at Sight

Product Description

Specifications:

Motor housing (D x L): 51.8 x 85mm
Material: SECD
Shaft: 6.35mm carbon steel (nickel-coated)
Way of commutation: carbon leaf brush system
Structures: 2 poles stator and 12 slots armature
Ball bearing on the driving side are available
Performance:
- Rated voltage: 220V DC
- At no load:
  - Speed: 11,500rpm
  - Current: 0.3A
- At maximum efficiency:
  - Speed: 9,000rpm
  - Current: 1A
  - Torque: 179.8mNm
  - Output: 64.2W
- At stall:
  - Current: 37.2A
  - Torque: 667.9mNm
Options: shaft length, technical data like voltage, speed, torque, optional EMI and EMC suppression
Insulation: class F magnet wire
Rotation: CW/CCW and reversible
EMC/EMI suppression: optional

Motor housing (D x L): 51.8 x 85mm

Material: SECD

Shaft: 6.35mm carbon steel (nickel-coated)

Way of commutation: carbon leaf brush system

Structures: 2 poles stator and 12 slots armature

Ball bearing on the driving side are available

Performance:

Rated voltage: 220V DC
At no load:
- Speed: 11,500rpm
- Current: 0.3A
At maximum efficiency:
- Speed: 9,000rpm
- Current: 1A
- Torque: 179.8mNm
- Output: 64.2W
At stall:
- Current: 37.2A
- Torque: 667.9mNm
