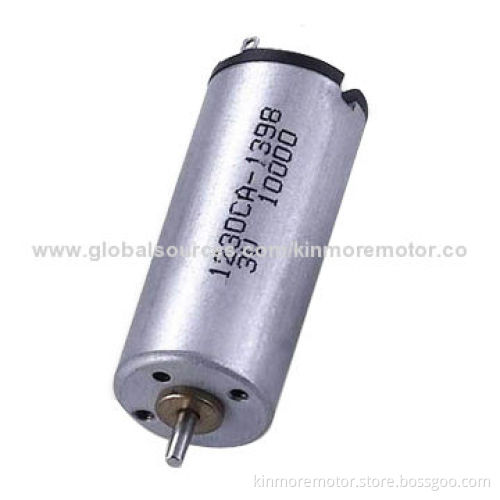

DC Motor Controller for Household Appliances, Tooth Brushes, Massager and Toy

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Specifications:

Motor housing (D x L): 12 x 30mm (material: SECD)
Shaft (diameter): 1.5mm carbon steel (nickel coating)
Way of commutation: metal brush
Structure: 2 poles stator and 3 slots armature
Rotation: CW/CCW and reversible
Options: EMI/EMC suppression, vibration motor

Technical performance data:

Rated voltage: 1.5V DC
At no load:
- Speed: 9,300rpm
- Current: 0.15A (maximum)
At 4g.cm load:
- Speed: 7,200rpm
- Current: 0.48A (maximum)
At stall:
- Current: 1.7A (maximum)
- Torque: 13g/cm (minimum)

Customized data requirements are welcomed for engineer's evaluation

Applications: suitable for household appliances and tooth brushes

About us:

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors
Product size range: 6-52mm, diameter
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5-30kg.cm
Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more

Motor housing (D x L): 12 x 30mm (material: SECD)

Shaft (diameter): 1.5mm carbon steel (nickel coating)

Way of commutation: metal brush

Structure: 2 poles stator and 3 slots armature

Rotation: CW/CCW and reversible

Options: EMI/EMC suppression, vibration motor

Rated voltage: 1.5V DC

At no load:

Speed: 9,300rpm
Current: 0.15A (maximum)

At 4g.cm load:

Speed: 7,200rpm
Current: 0.48A (maximum)

At stall:

Current: 1.7A (maximum)
Torque: 13g/cm (minimum)

Speed: 9,300rpm

Current: 0.15A (maximum)

Speed: 7,200rpm

Current: 0.48A (maximum)

Current: 1.7A (maximum)

Torque: 13g/cm (minimum)

Main products: auto DC, electric, gear, DC, brush DC, spur gear, micro, vibration and more motors

Product size range: 6-52mm, diameter

DC voltage range: 1.5-42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000rpm

Stall torque: 5-30kg.cm

Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio, visual equipment and more
