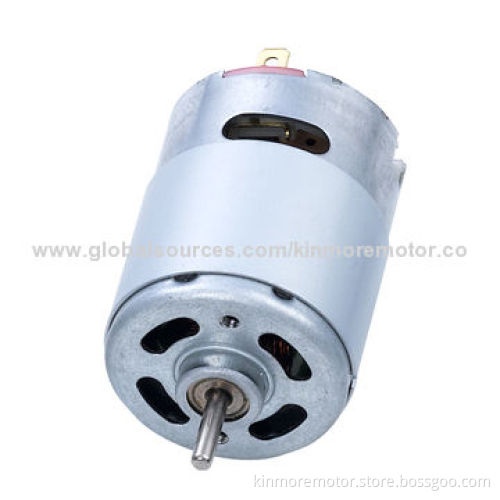

12V DC Electric Motor with High-torque for RC Model

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Metal end cap
Class F magnet wire
Leaf brush system
Carbon steel shaft

Typical applications:

Headrest adjuster
Vacuum cleaner
Bilge pump
RC model
Toys

Dimensions:

Diameter: Ø35.8mm
Length: 50mm
Shaft diameter: Ø3.175mm
The shaft length could be custom made according to your requirements

Technical data of the motor:

Voltage:
- Operating range: 6.0-24.0V
- Nominal voltage: 12V
No load:
- Speed: 19,500rpm
- Current: 0.95A
At maximum efficiency:
- Speed: 16,634rpm
- Current: 5.51A
- Torque:28.8mNm/294g.cm
- Output: 50.22W
- Stall torque: 196.1mNm/2,000g.cm
- Stall current: 32A
Direction of rotation: CW/CCW (change the polarity and direction of rotation)

Note: all of the performance could be change according to your requirements

About us:

Our main products: diameter 6-52mm DC micro motor and gear motor
Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
Size range: diameter: 6-52mm
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5-30kg.cm

Applications: home appliances, power tools, toys and models, precision instruments, office equipment, personal care products, automotive, audio and visual equipment and more
