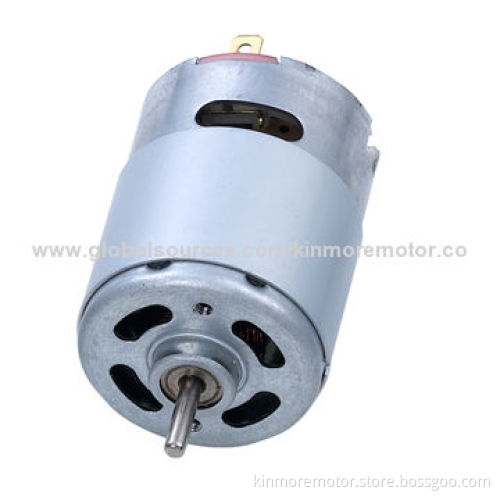

13V 3900rpm DC electric motor with 5 slots armature for vacuum cleaner

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Learn more about us:

Our main products: Ø6-52mm DC micro motor and gear motor
Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more
Products size range: Ø6-52mm
DC voltage range: 1.5-42V
AC rectify: 100, 110, 220, 230, 240V and more
Speed range: 1-30,000rpm
Stall torque: 5g.cm-30kg.cm
Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Dimensions of the DC motor:

Length of the housing: 50mm
Diameter of the motor: Ø35.8mm
Shaft diameter: Ø3.175mm
Performance of the DC motor:
1. Voltage:
  - Operating range: 6.0-24.0V
  - Nominal voltage: 13V
2. No load:
  - Speed: 3900rpm
  - Current: 0.15A
3. At max efficiency:
  - Speed: 3120rpm
  - Current: 0.6A
  - Torque: 13.9mNm/142g.cm
  - Output: 4.54W
4. Stall:
  - Torque: 69.53mNm/709g.cm
  - Current: 2.4A
5. Direction of rotation: CW/CCW
Note: all of the technical data can be customized according to requirements

Features of the DC motor:

Metal end cap
Class F magnet wire
Leaf brush system
Carbon steel shaft

Typical applications:

Headrest adjuster
Vacuum cleaner
Bilge pump
RC model
Toys

Constructions of motor:

2-pole stator
Sr ferrite permanent magnet
3, 5, 7, 8, 9, 12 slots armature
Silicon-steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commutator
Copper-graphite brushes
Be-Cu leaf-brush commuting system
SECD round/flat shape housing
SECD end cap/PA66+fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Our main products: Ø6-52mm DC micro motor and gear motor

Auto DC motor, electric motor, gear motor, DC motor, brush DC motor, spur gear motor, micro motor, vibration motor and more

Products size range: Ø6-52mm

DC voltage range: 1.5-42V

AC rectify: 100, 110, 220, 230, 240V and more

Speed range: 1-30,000rpm

Stall torque: 5g.cm-30kg.cm

Applications: home appliance, power tools, toys and model, precision instrument, office equipment, personal care product, automotive, audio and visual equipment and more

Length of the housing: 50mm

Diameter of the motor: Ø35.8mm

Shaft diameter: Ø3.175mm

Performance of the DC motor:

Voltage:
- Operating range: 6.0-24.0V
- Nominal voltage: 13V
No load:
- Speed: 3900rpm
- Current: 0.15A
At max efficiency:
- Speed: 3120rpm
- Current: 0.6A
- Torque: 13.9mNm/142g.cm
- Output: 4.54W
Stall:
- Torque: 69.53mNm/709g.cm
- Current: 2.4A
Direction of rotation: CW/CCW
