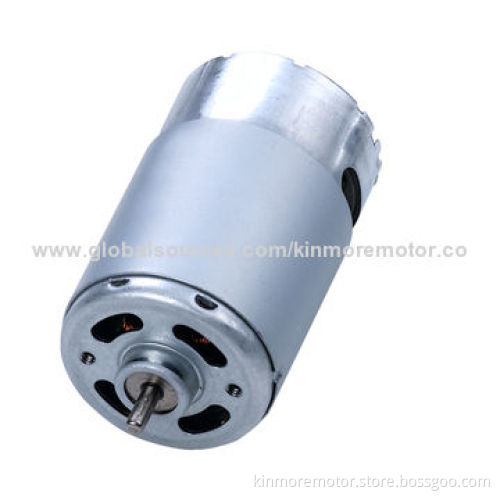

DC electric motor with 24V 5,300RPM for cars
  • DC electric motor with 24V 5,300RPM for cars
DC electric motor with 24V 5,300RPM for cars

DC electric motor with 24V 5,300RPM for cars

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Dimension of the motor:
    • Diameter: 35.8mm
    • Length: 57mm
    • Diameter of shaft: 3.175mm
  • Technical of the motor:
    • Voltages:
      • Operating range: 6.0-24.0V
      • Nominal voltage: 24V
    • No load:
      • Speed: 5,300rpm
      • Current: 0.13A
    • At maximum efficiency:
      • Speed: 4473rpm
      • Current: 0.7A
      • Torque: 23.9mNm/244g.cm
      • Output: 11.19W
    • Stall torque: 153mNm/1561g.cm
    • Stall current: 3.8A
    • Direction of rotation: CW/CCW
  • Noted: All of the performance could be change according to your requirements
  • Features of the motor:
    • Metal end cap
    • Class F magnet eire
    • Leaf brush system
    • Carbon steel shaft
    • 5slots armature
  • Typical Applications:
    • Cordless power tool
    • RC model
    • Ride-on car
    • EPB/ETC/air pump/door closer
  • Diameter: 35.8mm
  • Length: 57mm
  • Diameter of shaft: 3.175mm
  • Voltages:
    • Operating range: 6.0-24.0V
    • Nominal voltage: 24V
  • No load:
    • Speed: 5,300rpm
    • Current: 0.13A
  • At maximum efficiency:
    • Speed: 4473rpm
    • Current: 0.7A
    • Torque: 23.9mNm/244g.cm
    • Output: 11.19W
  • Stall torque: 153mNm/1561g.cm
  • Stall current: 3.8A
  • Direction of rotation: CW/CCW
  • Operating range: 6.0-24.0V
  • Nominal voltage: 24V
  • Speed: 5,300rpm
  • Current: 0.13A
  • Speed: 4473rpm
  • Current: 0.7A
  • Torque: 23.9mNm/244g.cm
  • Output: 11.19W
  • Metal end cap
  • Class F magnet eire
  • Leaf brush system
  • Carbon steel shaft
  • 5slots armature
  • Cordless power tool
  • RC model
  • Ride-on car
  • EPB/ETC/air pump/door closer
