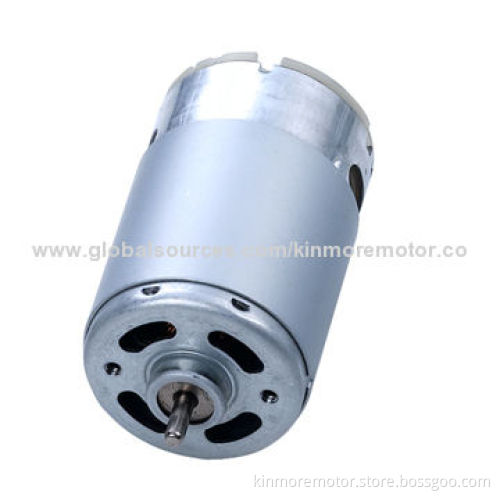

24V 4500RPM Micro DC Motor with High Torque for RC Model

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Plastic end cap
Class F-magnet wire
Leaf brush system
Carbon steel shaft
3 slots armature

Dimension:

Diameter of the motor: 35.8mm
Length of the motor: 57mm
Diameter of the output shaft: 3.175mm

Performance:

Voltage:
- Operating range: 6.0-24.0V
- Nominal voltage: 24.0V
No load:
- Speed: 4500rpm
- Current: 0.1A
At Max. Efficiency:
- Speed: 3932rpm
- Current: 0.39A
- Torque: 25.7mNm/262g.cm
- Output: 10.6W
Stall:
- Torque: 204mNm/2080g.cm
- Current: 4.8A
Direction of rotation: CW/CCW

Note: All of the data could be custom made according to your requirements

Customization options:

OEM orders and customized designs are accepted
With the RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero axial gap
Low-noise design
Fast response (small Tm)
High-torque at low-speed
PTC protection
Phenolic resin base commutator
Epoxy coating armature
Lightweight and long lifespan

Typical applications:

Codeless power tool
EPB/Air pump/door closer
Bilge pump
RC model

Inspection to guarantee reliable quality:

Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Plastic end cap

Class F-magnet wire

Leaf brush system

Carbon steel shaft

3 slots armature

Diameter of the motor: 35.8mm

Length of the motor: 57mm

Diameter of the output shaft: 3.175mm

Voltage:

Operating range: 6.0-24.0V
Nominal voltage: 24.0V

No load:

Speed: 4500rpm
Current: 0.1A

At Max. Efficiency:

Speed: 3932rpm
Current: 0.39A
Torque: 25.7mNm/262g.cm
Output: 10.6W

Stall:

Torque: 204mNm/2080g.cm
Current: 4.8A

Direction of rotation: CW/CCW

Operating range: 6.0-24.0V

Nominal voltage: 24.0V

Speed: 4500rpm

Current: 0.1A

Speed: 3932rpm

Current: 0.39A

Torque: 25.7mNm/262g.cm

Output: 10.6W

Torque: 204mNm/2080g.cm

Current: 4.8A

OEM orders and customized designs are accepted

With the RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero axial gap

Low-noise design

Fast response (small Tm)

High-torque at low-speed

PTC protection

Phenolic resin base commutator

Epoxy coating armature

Lightweight and long lifespan

Codeless power tool

EPB/Air pump/door closer

Bilge pump

RC model

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
