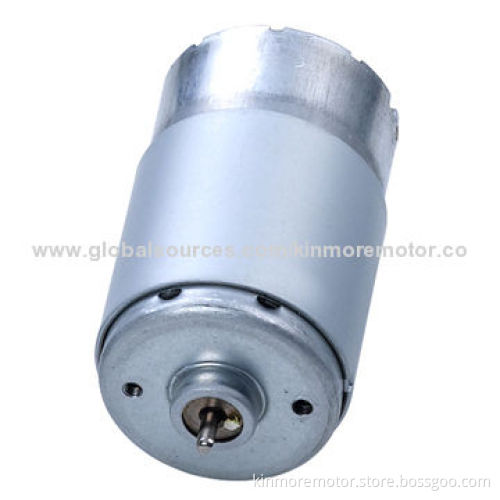

5 slots armature micro dc motor with no load speed 3,000RPM for car

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Diameter of the motor: 35.8mm

Length fo the motor: 60mm

Diameter of the shaft:3.175mm

Voltages:

Operating voltage: 6.0-15.0V
Nominal voltage: 13.5V

No Load:

Speed: 3,000rpm
Current: 0.11A

At Max. efficiency:

Speed: 2632rpm
Current: 0.52A

Torque: 19.6mNm/200g.cm

Output: 5.4W

Stall toruqe: 147.1mNm/1500g.cm

Stall current: 3.87A

Metal end cap

Class F magnet wire

Leaf brush system

Carbon steel shaft

Customization options:

OEM and customization are accepted
Compliant with the RoHS Directive
Ball bearing in output side
EMI suppression
Low-cogging design
High-degrees of protection
Small mechanical tim

Application of the motor:

Cordless power tool
EPB/Air pump/door closer
Ride-on car
RC model

Inspection to guarantee reliable quality:

Material lot acceptance inspection
Material lifespan test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Operating voltage: 6.0-15.0V

Nominal voltage: 13.5V

Speed: 3,000rpm

Current: 0.11A

Speed: 2632rpm

Current: 0.52A

OEM and customization are accepted

Compliant with the RoHS Directive

Ball bearing in output side

EMI suppression

Low-cogging design

High-degrees of protection

Small mechanical tim

Cordless power tool

EPB/Air pump/door closer

Ride-on car

RC model

Material lot acceptance inspection

Material lifespan test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection
