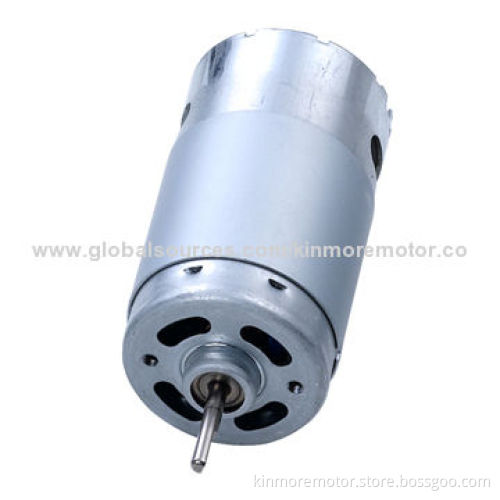

High torque DC motor 24V with flux ring for vacuum cleaner

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

Metal end cap
Class F magnet wire
Leaf brush system
Carbon steel shaft
5 slots armature

Dimensions:

Diameter of housing: Ø35.8mm
Length of housing: 67mm
Diameter of the output shaft: Ø3.175mm
Note: the length output shaft could be custom made according to your demand
The motor could be made double output shaft

Performance of the DC motor:

Voltages:
- Operating voltage: 6.0-24.0V
- Nominal voltage: 24.0V
No load:
- Speed: 3650rpm
- Current: 0.07A
At max. efficiency:
- Speed: 3233rpm
- Current: 0.54A
Torque: 23.2mNm/236.6g.cm
Output: 7.85W
Stall torque: 203mNm/2070g.cm
Stall current: 4.2A
Direction of rotation: CW/CCW

Noted: all of the technical data could be custom made according to your demand

Typical applications:

Cordless power tool
Sewing machine
Vacuum cleaner
Door opener

Inspection to guarantee reliable quality:

Tooling inspection
Material lot acceptance inspection
Material life test
First article inspection
Operator self-inspection
Random inspection
100% inspection to key process and motor electric performance
Final inspection

Construction of motor:

Two-pole stator
SR ferrite permanent magnet
3, 5, 7, 8, 9 and 12 slots armature
Silicone steel lamination with epoxy coating
High-carbon steel shaft
Cu-Ag alloys commentator
Copper graphite brushes
Cu leaf brush commutation system
SECD round/flat-shaped housing
SECD end cap/PA66 and fiber end cap
Cylinder (self-aligning) sintered bush
155° (class F) copper wire

Metal end cap

Class F magnet wire

Leaf brush system

Carbon steel shaft

5 slots armature

Diameter of housing: Ø35.8mm

Length of housing: 67mm

Diameter of the output shaft: Ø3.175mm

Note: the length output shaft could be custom made according to your demand

The motor could be made double output shaft

Voltages:

Operating voltage: 6.0-24.0V
Nominal voltage: 24.0V

No load:

Speed: 3650rpm
Current: 0.07A

At max. efficiency:

Speed: 3233rpm
Current: 0.54A

Torque: 23.2mNm/236.6g.cm

Output: 7.85W

Stall torque: 203mNm/2070g.cm

Stall current: 4.2A

Direction of rotation: CW/CCW

Operating voltage: 6.0-24.0V

Nominal voltage: 24.0V

Speed: 3650rpm

Current: 0.07A

Speed: 3233rpm

Current: 0.54A

Cordless power tool

Sewing machine

Vacuum cleaner

Door opener

Tooling inspection

Material lot acceptance inspection

Material life test

First article inspection

Operator self-inspection

Random inspection

100% inspection to key process and motor electric performance

Final inspection

Two-pole stator

SR ferrite permanent magnet

3, 5, 7, 8, 9 and 12 slots armature

Silicone steel lamination with epoxy coating

High-carbon steel shaft

Cu-Ag alloys commentator

Copper graphite brushes

Cu leaf brush commutation system

SECD round/flat-shaped housing

SECD end cap/PA66 and fiber end cap

Cylinder (self-aligning) sintered bush

155° (class F) copper wire
