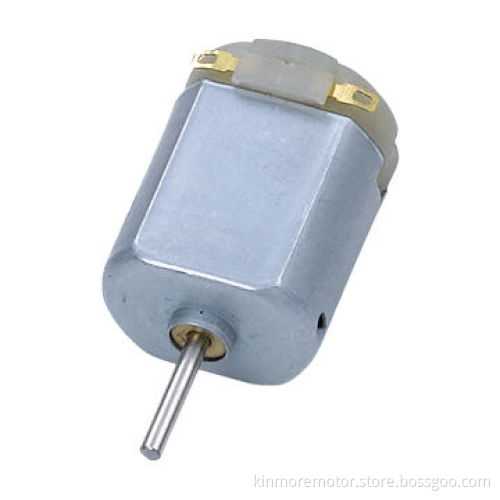

3v DC micro motor, using in RC model toy
  • 3v DC micro motor, using in RC model toy
3v DC micro motor, using in RC model toy

3v DC micro motor, using in RC model toy

Get Latest Price
Payment Type:
T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T, L/C, Western Union, Cash, PayPal or MoneyGram
Product Description
Product Description
  • Measuring conditions:
    • Rated voltage: 9 V DC
    • Motor position: To be measured with motor horizontally held
    • Environmental temperature: 25±10℃
    • Environmental humidity: 65%±20%RH
  • Electrical characteristics:
    • At No load
      • Speed: 6000 ±10%rpm
      • Current: 0.068A  max
    • At Max Efficiency
      • Torque: 15.1g.cm
      • Speed: 4182 ±10% rpm
      • Current: 0.16A
    • At Stall
      • Torque: 50g.cm
      • Current: 0.36A
    • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Mechanical characteristic:
    •  Dimension drawing: See <outline>
    •  End play: 0.05～0.3mm
    •  Operating temperatures: 0 ~ +45℃
  • Rated voltage: 9 V DC
  • Motor position: To be measured with motor horizontally held
  • Environmental temperature: 25±10℃
  • Environmental humidity: 65%±20%RH
  • At No load
    • Speed: 6000 ±10%rpm
    • Current: 0.068A  max
  • At Max Efficiency
    • Torque: 15.1g.cm
    • Speed: 4182 ±10% rpm
    • Current: 0.16A
  • At Stall
    • Torque: 50g.cm
    • Current: 0.36A
  • Direction of rotation: CCW (Counter-clockwise when viewing from the output shaft end with positive voltage applied to positive terminal)
  • Speed: 6000 ±10%rpm
  • Current: 0.068A  max
  • Torque: 15.1g.cm
  • Speed: 4182 ±10% rpm
  • Current: 0.16A
  • Torque: 50g.cm
  • Current: 0.36A
  •  Dimension drawing: See <outline>
  •  End play: 0.05～0.3mm
  •  Operating temperatures: 0 ~ +45℃
