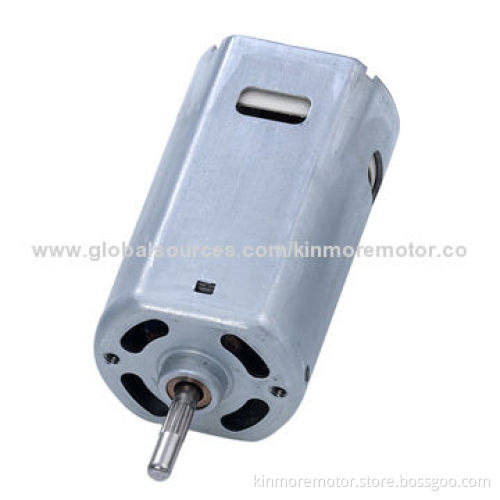

DC Motor High-voltage 230V AC Rectangle with Cage Brush system for Hair Clipper and Mixer

DC Motor High-voltage 230V AC Rectangle with Cage Brush system for Hair Clipper and Mixer

Get Latest Price

Payment Type:: T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, L/C, Western Union, Cash, PayPal or MoneyGram

Product Description

Features:

DMD insulation
Cage brush system
Metal end cap
12 slots armature
24 bars commutator

Dimensions:

Diameter of the motor: 35.8mm
Length of the motor: 63mm
Diameter of the shaft: 4.0mm

Specifications:

Voltage:
- Operating range: AC rectangle
- Nominal voltage: 230V
No loading:
- Speed: 11,200rpm
- Current: 0.12A
At maximum efficiency:
- Speed: 7,297rpm
- Current: 0.39A
- Torque: 462.4g.cm
- Output: 33.88W
Stall torque: 1,257g.cm
Stall current: 0.98A
Direction of rotation: CW/CCW
Note: all of the data could be custom made

Typical applications:

Rotary tool
Power brush
Mixer
Hair clipper

Customization options:

OEM and customization are available
With RoHS Directive-compliant
Ball bearing in output side
EMI suppression
Low-cogging design
High-degree of protection
Small mechanical time constant
Resist intense vibrations
Zero Axial gap
Low-noise design
Fast response (small TM)
High-torque at a low-speed
PTC protection
Pinole resin base commentator
Epoxy coating armature
Lightweight and long lifespan

Our main products are DC motor, gear motor and vibration motor, the parameters can be customized

DMD insulation

Cage brush system

Metal end cap

12 slots armature

24 bars commutator

Diameter of the motor: 35.8mm

Length of the motor: 63mm

Diameter of the shaft: 4.0mm

Voltage:

Operating range: AC rectangle
Nominal voltage: 230V

No loading:

Speed: 11,200rpm
Current: 0.12A

At maximum efficiency:

Speed: 7,297rpm
Current: 0.39A
Torque: 462.4g.cm
Output: 33.88W

Stall torque: 1,257g.cm

Stall current: 0.98A

Direction of rotation: CW/CCW

Note: all of the data could be custom made

Operating range: AC rectangle

Nominal voltage: 230V

Speed: 11,200rpm

Current: 0.12A

Speed: 7,297rpm

Current: 0.39A

Torque: 462.4g.cm

Output: 33.88W

Rotary tool

Power brush

Mixer

Hair clipper

OEM and customization are available

With RoHS Directive-compliant

Ball bearing in output side

EMI suppression

Low-cogging design

High-degree of protection

Small mechanical time constant

Resist intense vibrations

Zero Axial gap

Low-noise design

Fast response (small TM)

High-torque at a low-speed

PTC protection

Pinole resin base commentator

Epoxy coating armature

Lightweight and long lifespan
