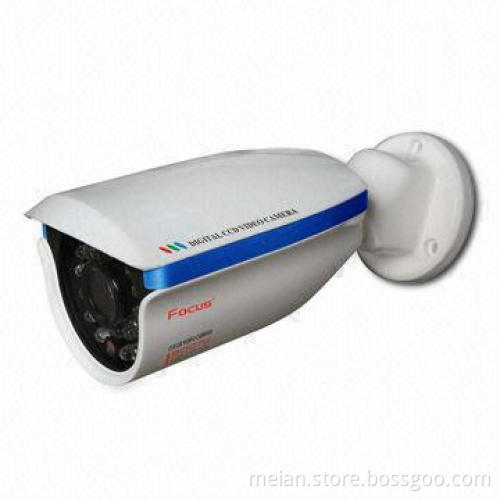

Waterproof CCTV Cameras
  • Waterproof CCTV Cameras
Waterproof CCTV Cameras

Waterproof CCTV Cameras

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Features:
    • Brand new design, accurate circuit and compact structure
    • Built-in decoder select wave frequency, address code, contactthrough menu
    • Specially designed IR LED PCB, strong infrared
    • Excellent temperature control technical to ensurestability
    • Sun-shield included, fits for indoor or dark environment
  • Specifications:
    • Image sensor: 1/3-inch Sony Super HAD CCD or 1/4-inch SharpCCD
    • Signal systems: PAL/NTSC
    • Pixels:
      • PAL (H x V): 752 x 582, 500 x 582 pixels
      • NTSC (H x V): 768 x 494, 510 x 492 pixels
    • Horizontal resolution: 480/420TVL (optional)
    • Day illumination: 0.3lux/F1.2, 0.8lux/F1.2
    • Night illumination: 0lux (IR-on)
    • IR range: 25m
    • Day/night transfer mode: photosensitive auto-control
    • Synchronous mode: internal sync
    • S/N ratio: more than 48dB
    • Gamma correction: 0.45
    • Video output: 1.0Vp-p, 75©
    • Electric shutter:
      • PAL: 1/50 to 1/100,000 seconds
      • NTSC: 1/60 to 1/100,000 seconds
    • Auto-gain compensation
    • BLC: automatic
    • White balance: not supported
    • Wavelength: 850nm
    • Waterproof class: IP66
    • Case: aluminum
    • Power supply: 12V DC
    • Power consumption: 110mA (IR off), 1,000mA (IR on)
    • Working temperatures: -10 to 50°C
    • Working humidity: 95% RH (maximum)
  • Brand new design, accurate circuit and compact structure
  • Built-in decoder select wave frequency, address code, contactthrough menu
  • Specially designed IR LED PCB, strong infrared
  • Excellent temperature control technical to ensurestability
  • Sun-shield included, fits for indoor or dark environment
  • Image sensor: 1/3-inch Sony Super HAD CCD or 1/4-inch SharpCCD
  • Signal systems: PAL/NTSC
  • Pixels:
    • PAL (H x V): 752 x 582, 500 x 582 pixels
    • NTSC (H x V): 768 x 494, 510 x 492 pixels
  • Horizontal resolution: 480/420TVL (optional)
  • Day illumination: 0.3lux/F1.2, 0.8lux/F1.2
  • Night illumination: 0lux (IR-on)
  • IR range: 25m
  • Day/night transfer mode: photosensitive auto-control
  • Synchronous mode: internal sync
  • S/N ratio: more than 48dB
  • Gamma correction: 0.45
  • Video output: 1.0Vp-p, 75©
  • Electric shutter:
    • PAL: 1/50 to 1/100,000 seconds
    • NTSC: 1/60 to 1/100,000 seconds
  • Auto-gain compensation
  • BLC: automatic
  • White balance: not supported
  • Wavelength: 850nm
  • Waterproof class: IP66
  • Case: aluminum
  • Power supply: 12V DC
  • Power consumption: 110mA (IR off), 1,000mA (IR on)
  • Working temperatures: -10 to 50°C
  • Working humidity: 95% RH (maximum)
  • PAL (H x V): 752 x 582, 500 x 582 pixels
  • NTSC (H x V): 768 x 494, 510 x 492 pixels
  • PAL: 1/50 to 1/100,000 seconds
  • NTSC: 1/60 to 1/100,000 seconds
