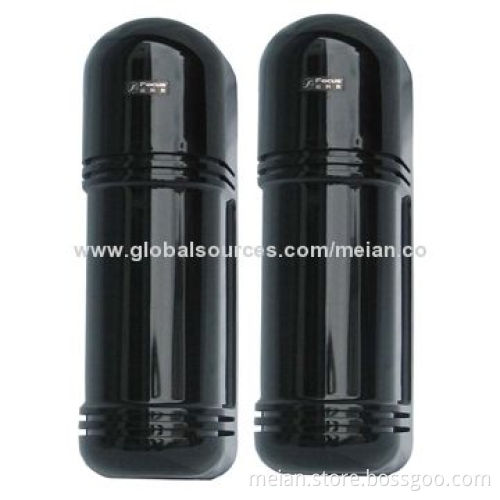

Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature
  • Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature
  • Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature
Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature
Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature

Photoelectric Beam Sensors, Waterproof with DSP Chip and -25 to 60°C Operating Temperature

Get Latest Price
Payment Type:
L/C, T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: L/C, T/T
Product Description
Product Description
  • Specifications:
    • With DSP chip, patented multiple dimensional mistake-corrective code and true detection alarm technology
    • Two groups of individual fine tuner
    • Built-in optical collimation mirror
    • Outdoor distance: 50, 100, 150, 200 and 250m
    • Indoor distance: 150, 300, 450, 600 and 750m
    • Beams: four
    • Optical source: digital infrared pulse
    • Response speed: 50 to 700 minutes/second
    • Alarm output common: NC and NO contact capacitor 30V AC/DC/0.5m
    • AAlarm output bus: mA bus across wave carrier model
    • Voltage: 9 to 24V DC, 11 to 18V AC
    • Current: 60 and 65mA
    • Operating temperature: -25 to 60°C
    • Humidity range: 5 to 95% RH
    • Level adjustment axis: 180° (±90°)
    • Vertical adjustment axis: ±10°
    • Tamper output: normal close (NC) touching capability 24V AC/DC/0.5mA
    • Visibility: ≥5m
    • Crust material: PC resin tin metal
    • Housing material: polycarbonate
  • With DSP chip, patented multiple dimensional mistake-corrective code and true detection alarm technology
  • Two groups of individual fine tuner
  • Built-in optical collimation mirror
  • Outdoor distance: 50, 100, 150, 200 and 250m
  • Indoor distance: 150, 300, 450, 600 and 750m
  • Beams: four
  • Optical source: digital infrared pulse
  • Response speed: 50 to 700 minutes/second
  • Alarm output common: NC and NO contact capacitor 30V AC/DC/0.5m
  • AAlarm output bus: mA bus across wave carrier model
  • Voltage: 9 to 24V DC, 11 to 18V AC
  • Current: 60 and 65mA
  • Operating temperature: -25 to 60°C
  • Humidity range: 5 to 95% RH
  • Level adjustment axis: 180° (±90°)
  • Vertical adjustment axis: ±10°
  • Tamper output: normal close (NC) touching capability 24V AC/DC/0.5mA
  • Visibility: ≥5m
  • Crust material: PC resin tin metal
  • Housing material: polycarbonate
