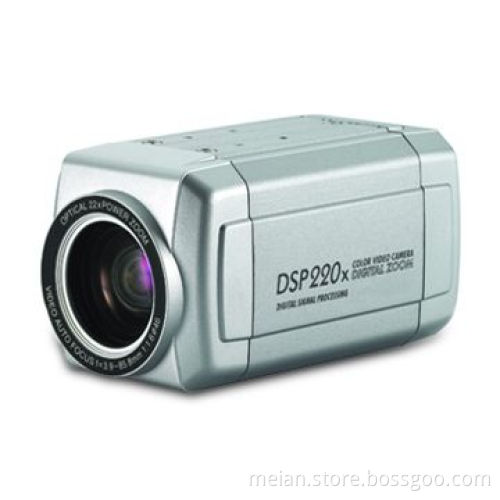

CCD Camera with 520TVL Horizontal Resolutions, 3W Maximum Power Consumption

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C, T/T

Product Description

Adopts 1/3-inch DPS (digital pixel system) wide dynamic imagesensor

Horizontal resolutions: 520TVL (high-resolution mode: up to540TVL)

DPS digital processor technology

120dB super wide dynamic range up to 120dB

Screen menu (OSD), programmable, supports different kinds oflanguages

High-quality image, special designed super dynamic range

Especially fit for unpredictable

Functions: BLC, 2x digital magnification, non-blink, imageimprove, SDNR

Especially fits for road, toll gate, car station, port, squareand more

Image sensor: 1/3-inch DPS (digital pixels)

Signal system: compatible PAL and NTSC

Effective pixels:

PAL (H x V): 720 x 540 pixels

NTSC (H x V): 720 x 540 pixels

Minimum illumination: 0.5 lux/F1.2, 0.08 lux/F1.2 slow shuttermode

S/N ratio: more than 48dB

Dynamic range: 101dB (normal), 120dB (maximum)

Control mode: OSD screen menu control mode

White balance range: AWB/ATW/ATW LIMIT/ATW DESAT/manualmultiple white balance modes (optional)

Color temperature range: 2,000 to 11,000K

Auto gain: adjustable

Lens interface: CS/C

Gamma correction: adjustable

Synchronization system: internal synchronization/LL

Iris control: video/DC iris

Power supply: 12V DC

Power consumption: 3W (maximum)

Working temperatures: -10 to 50°C

Humidity: 95% RH (maximum)

Weight: 500g
