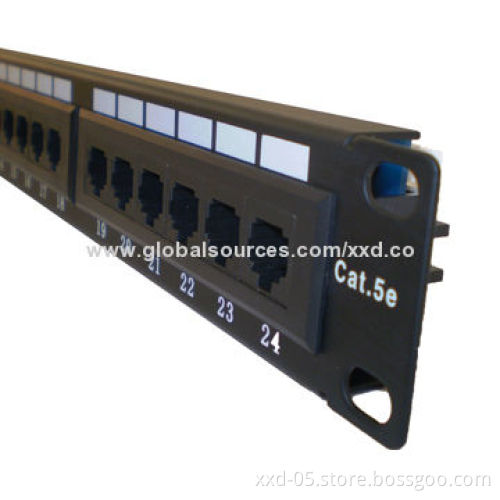

RJ45 24 Port Cat5e UTP Patch Panel from Cable Manufacturer

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T or Western Union, 30% in Advance and 70% befor

Product Description

Electrical:

Environmental:

Mechanical:

Voltage rating: 125V AC rms

Current rating: 1.5A

Contact resistance: 20mΩ (maximum)

Insulation resistance: 100MΩ minimum at 500V DC

Dielectric strength: 750V AC rms, 60Hz, 1 minute

Storage: -40 to +70°C

Operating: -10 to 60°C

Mates with modular plug conforming to FCC part 68, sub-part F

Housing material: PBT + 30% GF

Panel flame: st-12, t = 1.6, powder coating in black color

IDC material: PC, contact: phosphor bronze, tin-plated

RJ45 jack lifespan: 750 times (minimum)

IDC lifespan: 200 times (minimum)

Wire: 22-24AWG

TIA cat 6a permanent link test: worst pair next margin ≥3.0dB

Retentiveness of insertion structure: 50n, 60 ±5 seconds
