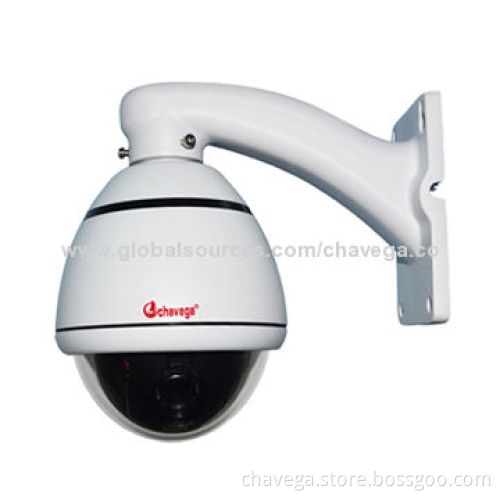

700TVL 10x optical zoom outdoor HD-SDI mini high speed dome camera, 12V DC, 2A voltage

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

1/3-inch Sony EFFIO-E CCD and DSP

700TVL (color) high-resolution

10x optical zoom module, auto focus

256 presets, 4 patterns, 8 cruises

360° horizontal, 180° vertical rotation, 200°/second

OSD menu

Voltage: 12V DC, 2A

Model No.: CSJ-H4AS-E

Image sensor: 1/3" Sony CCD

Signal model: PAL/NTSC

Horizontal resolution: 480 TVL

Effective pixels: 795 （horizontal）x 596 （vertical）

Minimum illumination: Color to B/W, color: 0.01Lux, B/W: 0.001Lux

S/N radio: >60dB (Enhanced)

Backlight compensation: On/Off

White balance: Auto

Electronic shutter range: 1/50~1/12,000 seconds

Focus length: 5~50mm

Optical focus: 10X

Focus: Auto/manual, take high-performance DSP to realize complete digit and ultra-high speed focus function

Presets: 256

Patrol track: 4 groups, each can record 200 actions

Cruise track: Total 30 presets can join cruise, can setting the presets' residence time

Other scans: Supports horizontal scan, deuce area scan, scan random

Rotation range: Horizontal 360° unlimited rotation, vertical 90°, auto reversal

Rotation speed: Horizontal & vertical Min 0.01°, max 200°/S

Communications: RS-485, PELCO D, PELCO P

OSD: Yes

Temperature control: built-in

Power supply: DC12V/2A

Material: Aluminum shell

Work environment: -20℃~+50℃ (select temperature control accessories), <95%RH
