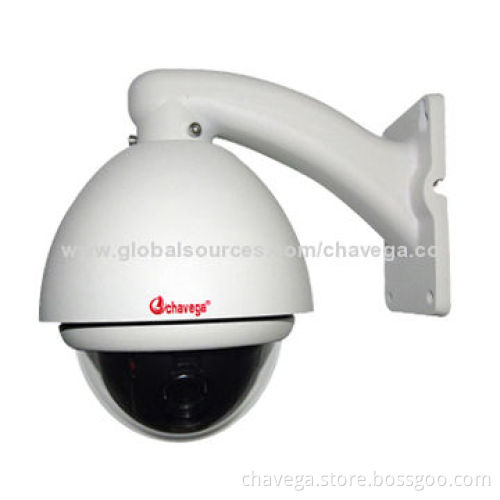

480TVL Sony CCD IP66 waterproof wireless outdoor dome PTZ IP camera with 10x optical zoom module

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

1/3-inch Sony EFFIO-E CCD and DSP

480TVL (color) high-resolution

10x optical zoom module, auto-focus

256 presets, 4 patterns, 8 cruises

360° horizontal, 180° vertical rotation, 200°/second

OSD menu

Voltage: 12V DC, 2A

Model no.: CSJ-H4AP-E

Image sensor: 1/3" Sony CCD

Signal model: PAL/NTSC

Horizontal resolution: 480 TVL

Effective pixel: 795 (Horizontal)x 596 (Vertical)

Minimum illumination

Color to B/W, color: 0.01Lux, B/W: 0.001Lux

S/N radio: >60dB(Enhanced)

Backlight compensation: On/Off

White balance: Auto

Electronic shutter: 1/50-1/12,000 seconds

Focus length: 5-50mm

Optical focus: 10X

Focus: Auto/manual, take high-performance DSP to realize complete digit and ultra- high speed focus function

Presets: 256

Patrol track: 4 groups, each can record 200 actions

Cruise track: Total 30 presets can join cruise, can setting the presets' residence time

Other scan: Support horizontal scan, deuce area scan, scan random

Rotation range: Horizontal 360°unlimted rotation, vertical 90°, auto reversal

Rotation speed: Horizontal & vertical min 0.01°, maximum 200°/S

Communications: RS-485, PELCO D, PELCO P

OSD: Yes

Temperature control: built-in

Power supply: DC 12V/2A

Material: Aluminum shell

Work environment: -20-50C (select temperature control accessories), <95%RH
