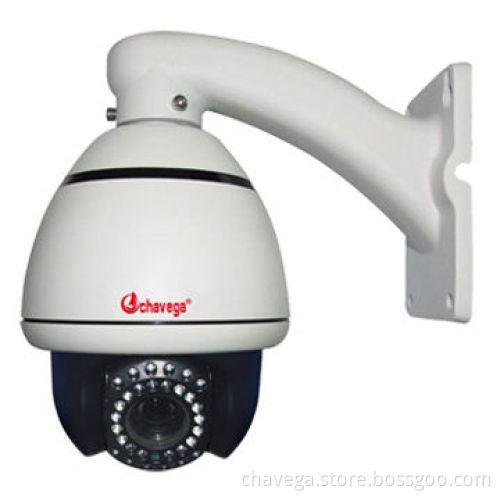

New Network 1.3 Megapixels Mini IP PTZ Camera

New Network 1.3 Megapixels Mini IP PTZ Camera

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

General:

Processor: TI DSP solution

Operating system: Embedded Linux
User interface: NVR, CMS, WEB (IE, Chrome, FireFox and more)

Camera:

Image Sensor 1/2.8" Sony CMOS, 1.3 megapixels progressive scan
Effective pixels: 1280(H) × 720(V), 720p, full HD
Electronic shutter:
- PAL: 1/25-1/10000S
- NTSC: 1/30-1/12000S
Mini illumination 0.1 lux (color), 0.02 lux (black/white)
Signal noise ratio: >60dB
WDR WDR, (120dB)
Auto gain control: auto/manual
White balance: auto/manual
Day/night mode auto, dual IR-cut filter
Lens: 3.0-39mm, F1.2
Optical: 10x
Digital noise reduction: 3D/2D

Video:

Compression: H.264, MJPEG, MPEG-4
H.264 encode type H.264 main profile, high profile, baseline available
Encoding speed main stream: 1080p/720p, 30fps/25/fps
Secondary stream: D1/CIF/2CIF, 25fps
Video bit rate main stream: 10Mbps-100Mbps
Sub stream: 32Kbps-16Mbps, supports CBR-VBR
Video format: PAL/NTSC

Audio:

Compression: G.711, G.726, supports 32k stereo
Audio bit rate: 6kbps, 8kbps, 12kbps
Audio input: optional
Audio output: optional

Network:

Ethernet RJ-45 (10/100Base-T)
Network protocol IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP
Supports latest Onvif
Maximum user's access: 10 users
Smartphone: supports Apple's iPhone/iPad, Android, Windows Phone, Symbian
Remote operation monitor, playback, system setting, file download
Log note, maintenance, upgrade

Additional features:

Patrol: 8pcs
Presets: 256
Auto scan: 8pcs
Pattern: 4pcs
Privacy zone: 8pcs
Alarm: 2-way input, -way output (optional)

Environmental:

Maximum IR distance: 40m
Power supply: DC 12V, 3A
POE: N/A
Ingress protection: IP66, waterproof, weather-proof
Power consumption: <50W
Operating environment: -40-+65°C
Humidity range: 10-90%

Packaging:

Gross weight: 4kg
Dimensions: 320*320*440mm
Carton: 4pcs/carton, 470*330*650mm, 18kg

Operating system: Embedded Linux

User interface: NVR, CMS, WEB (IE, Chrome, FireFox and more)

Image Sensor 1/2.8" Sony CMOS, 1.3 megapixels progressive scan

Effective pixels: 1280(H) × 720(V), 720p, full HD

Electronic shutter:

PAL: 1/25-1/10000S
NTSC: 1/30-1/12000S

Mini illumination 0.1 lux (color), 0.02 lux (black/white)

Signal noise ratio: >60dB

WDR WDR, (120dB)

Auto gain control: auto/manual

White balance: auto/manual

Day/night mode auto, dual IR-cut filter

Lens: 3.0-39mm, F1.2

Optical: 10x

Digital noise reduction: 3D/2D

PAL: 1/25-1/10000S

NTSC: 1/30-1/12000S

Compression: H.264, MJPEG, MPEG-4

H.264 encode type H.264 main profile, high profile, baseline available

Encoding speed main stream: 1080p/720p, 30fps/25/fps

Secondary stream: D1/CIF/2CIF, 25fps

Video bit rate main stream: 10Mbps-100Mbps

Sub stream: 32Kbps-16Mbps, supports CBR-VBR

Video format: PAL/NTSC

Compression: G.711, G.726, supports 32k stereo

Audio bit rate: 6kbps, 8kbps, 12kbps

Audio input: optional

Audio output: optional

Ethernet RJ-45 (10/100Base-T)

Network protocol IPv4/IPv6, TCP/IP, UDP, RTP, RTSP, RTCP, HTTP, DNS, DDNS, DHCP, FTP, NTP, PPPOE, SMTP, UPNP

Supports latest Onvif

Maximum user's access: 10 users

Smartphone: supports Apple's iPhone/iPad, Android, Windows Phone, Symbian

Remote operation monitor, playback, system setting, file download

Log note, maintenance, upgrade

Patrol: 8pcs

Presets: 256

Auto scan: 8pcs

Pattern: 4pcs

Privacy zone: 8pcs

Alarm: 2-way input, -way output (optional)

Maximum IR distance: 40m

Power supply: DC 12V, 3A

POE: N/A

Ingress protection: IP66, waterproof, weather-proof

Power consumption: <50W

Operating environment: -40-+65°C

Humidity range: 10-90%

Gross weight: 4kg

Dimensions: 320*320*440mm

Carton: 4pcs/carton, 470*330*650mm, 18kg
