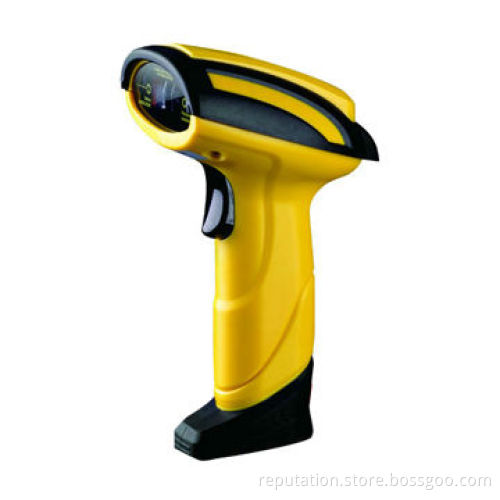

1/2D barcode scanner lowest reflectivity difference is 30％
  • 1/2D barcode scanner lowest reflectivity difference is 30％
  • 1/2D barcode scanner lowest reflectivity difference is 30％
1/2D barcode scanner lowest reflectivity difference is 30％
1/2D barcode scanner lowest reflectivity difference is 30％

1/2D barcode scanner lowest reflectivity difference is 30％

Get Latest Price
Payment Type:
Bank Transfer, Western Union, PayPal or Escrow
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Bank Transfer, Western Union, PayPal or Escrow
Product Description
Product Description
  • Parameters:
    • Light source
    • White LED
    • Gunsight
    • Red LED，617nm
    • Indicator light
    • Green=decoding successfully: Red decoding failed
    • System interface
    • KB & USB
    • Scan type
    • CMOS
    • Scan angle:
      • Pitching±70°
      • Incline ±60°
      • Rotation: ±180°
    • Identifiable contrast ratio
    • The lowest reflectivity difference is 30％
    • Decoding capacity
    • Decoding standard 1D/2D barcode
    • Size(L*W*H mm）
    • 165mm x 70mm x 98mm
    • Weight: 120g
    • Input Voltage: 4-5.5 V DC
    • Working power: 2W: 400 mA @ 5V typical value
    • Standby power: 0.45w, 90mA @ 5V typical value
    • DC power supply: Class2: 5.2VDC @ 1A
    • EMC: EN55022, EN55024 class B
    • LED security certificate: IEC62471
    • CB: IEC60950
    • Synthesis certificates: GOST-R, CE
    • Work temperatures: 0 - 40°C
    • Storage temperatures: -40 - 60°C
    • Humidity range: 5%-95% relative humidity & non-condensing status
    • Illuminance: 0 - 100,000LUX
    • Shock resistance
    • Can bear the shock from 2m height
    • Dust proof: Seal designed effectively prevents the dust come into the scanner
    • IP level: IP40
    • Barcode density
    • Depth of field:
      • 5 mil code39: 33 - 95 mm (1.3 - 3.7 in.)
      • 13 mil UPC-A: 32 - 255 mm (1.3 - 10.0 in.)
      • 20 mil code 39: 35 - 355 mm (1.4 - 14.0 in.)
      • 6.7 mil PDF417: 30 - 95 mm (1.2 - 3.7 in.)
      • 10mil data matrix: 30 - 100 mm (1.2 - 3.9 in.)
      • 15mil data matrix: 21 -162 mm (0.8 -6.4 in.)
      • 20mil QR: 23 -200 mm (0.9 -7.9 in.)
    • Resolution: 4 mil
    • Exercise tolerance
    • 100mm sec. 13 mil UPC
  • Light source
  • White LED
  • Gunsight
  • Red LED，617nm
  • Indicator light
  • Green=decoding successfully: Red decoding failed
  • System interface
  • KB & USB
  • Scan type
  • CMOS
  • Scan angle:
    • Pitching±70°
    • Incline ±60°
    • Rotation: ±180°
  • Identifiable contrast ratio
  • The lowest reflectivity difference is 30％
  • Decoding capacity
  • Decoding standard 1D/2D barcode
  • Size(L*W*H mm）
  • 165mm x 70mm x 98mm
  • Weight: 120g
  • Input Voltage: 4-5.5 V DC
  • Working power: 2W: 400 mA @ 5V typical value
  • Standby power: 0.45w, 90mA @ 5V typical value
  • DC power supply: Class2: 5.2VDC @ 1A
  • EMC: EN55022, EN55024 class B
  • LED security certificate: IEC62471
  • CB: IEC60950
  • Synthesis certificates: GOST-R, CE
  • Work temperatures: 0 - 40°C
  • Storage temperatures: -40 - 60°C
  • Humidity range: 5%-95% relative humidity & non-condensing status
  • Illuminance: 0 - 100,000LUX
  • Shock resistance
  • Can bear the shock from 2m height
  • Dust proof: Seal designed effectively prevents the dust come into the scanner
  • IP level: IP40
  • Barcode density
  • Depth of field:
    • 5 mil code39: 33 - 95 mm (1.3 - 3.7 in.)
    • 13 mil UPC-A: 32 - 255 mm (1.3 - 10.0 in.)
    • 20 mil code 39: 35 - 355 mm (1.4 - 14.0 in.)
    • 6.7 mil PDF417: 30 - 95 mm (1.2 - 3.7 in.)
    • 10mil data matrix: 30 - 100 mm (1.2 - 3.9 in.)
    • 15mil data matrix: 21 -162 mm (0.8 -6.4 in.)
    • 20mil QR: 23 -200 mm (0.9 -7.9 in.)
  • Resolution: 4 mil
  • Exercise tolerance
  • 100mm sec. 13 mil UPC
  • Pitching±70°
  • Incline ±60°
  • Rotation: ±180°
  • 5 mil code39: 33 - 95 mm (1.3 - 3.7 in.)
  • 13 mil UPC-A: 32 - 255 mm (1.3 - 10.0 in.)
  • 20 mil code 39: 35 - 355 mm (1.4 - 14.0 in.)
  • 6.7 mil PDF417: 30 - 95 mm (1.2 - 3.7 in.)
  • 10mil data matrix: 30 - 100 mm (1.2 - 3.9 in.)
  • 15mil data matrix: 21 -162 mm (0.8 -6.4 in.)
  • 20mil QR: 23 -200 mm (0.9 -7.9 in.)
