1D wired laser barcode scanner

Get Latest Price

Payment Type:: Bank Transfer, Western Union, PayPal or Escrow

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Bank Transfer, Western Union, PayPal or Escrow

Product Description

Advantages of this mould:

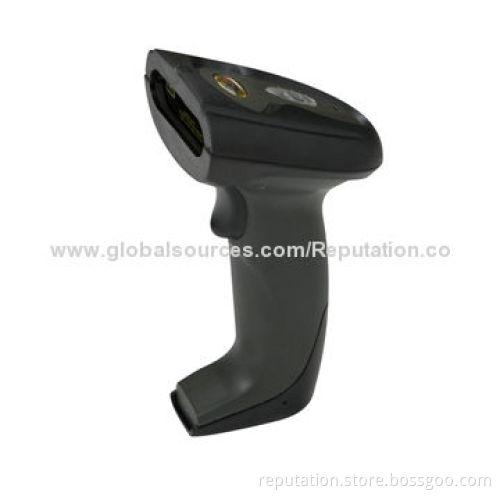

The head of the scanner, the handle and the base are protected by rubber, this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times
With the new technologies of the decoding chip, the scanner can be read and transfer more quickly. It can read 100 times/second
The easy setting procedure: plug and play
Competitive price: As we produce above 10000 pieces of this mould each month, we can buy the material in big quantity. And the cost will low down but the quality is still good
High quality and stable. When you read the barcode, the bit error rate is 1/50 million
Transfer cable interface: we have three kinds of transfer cable to choose the used, the ps2 and the RS232

Main parameters

Light source type: laser, the wave length is 650mm
Trigger mode: Manual
Scanning mode: Single-line scanning
Scanning speed: 100±2 times/s
Scan precision: ≥4mil
Printing contrast ratio: The lowest reflectivity difference is 30％
Bit error rate: 1/50 million
Environment luminance: 3,000-12,000Lux
Depth of field: 5mm-630mm
Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, Code 39, MSI, Code 11, Code 39 full ASCII, Code 39 TriOptic, Code 128, Code 128 full ASCII Codabar, Code 93, discrete 2 of 5, IATA, RSS variants, Codabar, Chinese 2 of 5, interleaved 2/5, interleaved 2 of 5, China postal service code and so on
Input voltage: 5VDC±0.25V
Outside materials: ABS+PC
Anti-knock capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Advantages of our company:

Monthly output: 30,000 pieces
The square of the factory: 5,000㎡
150 skilled worker and all of the 15 researchers have 3 years work experience in avera
All the products have the CE certification and every products will check carefully by our QC department
We are the golden supplier and 4 stars member of global sources
We promise send you new products if there is a quality problem

The head of the scanner, the handle and the base are protected by rubber, this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

With the new technologies of the decoding chip, the scanner can be read and transfer more quickly. It can read 100 times/second

The easy setting procedure: plug and play

Competitive price: As we produce above 10000 pieces of this mould each month, we can buy the material in big quantity. And the cost will low down but the quality is still good

High quality and stable. When you read the barcode, the bit error rate is 1/50 million

Transfer cable interface: we have three kinds of transfer cable to choose the used, the ps2 and the RS232

Light source type: laser, the wave length is 650mm

Trigger mode: Manual

Scanning mode: Single-line scanning

Scanning speed: 100±2 times/s

Scan precision: ≥4mil

Printing contrast ratio: The lowest reflectivity difference is 30％

Bit error rate: 1/50 million

Environment luminance: 3,000-12,000Lux

Depth of field: 5mm-630mm

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, Code 39, MSI, Code 11, Code 39 full ASCII, Code 39 TriOptic, Code 128, Code 128 full ASCII Codabar, Code 93, discrete 2 of 5, IATA, RSS variants, Codabar, Chinese 2 of 5, interleaved 2/5, interleaved 2 of 5, China postal service code and so on

Input voltage: 5VDC±0.25V

Outside materials: ABS+PC

Anti-knock capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

Monthly output: 30,000 pieces

The square of the factory: 5,000㎡

150 skilled worker and all of the 15 researchers have 3 years work experience in avera

All the products have the CE certification and every products will check carefully by our QC department

We are the golden supplier and 4 stars member of global sources

We promise send you new products if there is a quality problem
