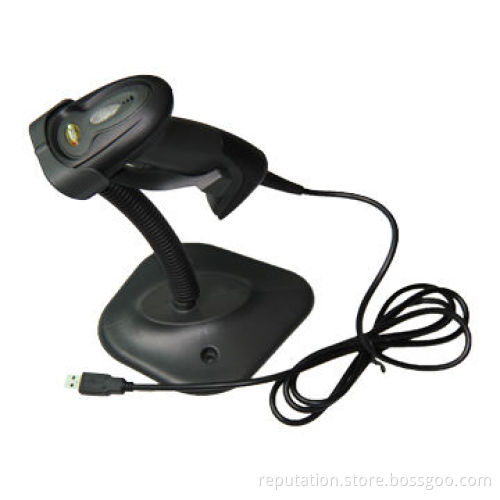

YT-760A Barcode Scanner with Buzzer and LED Indicator Prompt Modes

YT-760A Barcode Scanner with Buzzer and LED Indicator Prompt Modes

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Part number:YT760A

Light source type: visual lasing diode, the wave length is 650mm

Trigger mode: manual and automatic optional (note: this automatic trigger mode is the technology researched and developed by our company independently and more convenient and reasonable than the automatic induction technology used in the National and International barcode field)

Scanning mode: single-line

Scanning speed: 100 ±2 times/second

Resolution: ≥4-mil

Printing contrast ratio: the lowest reflectivity difference is 30％

Bit error rate: 1/50 million

Input voltage: 5V DC ±0.25V

Power: 250mW (working): 325mW (momentary maximum)

Current: 50mA (working): 65mA (momentary maximum)

Standby current: ＜20mA

Light intensity: 3,000-12,000 Lux

Depth of field: 5-630mm

Scanning angle: ±60, ±65, ±42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, Code 39, MSI, Code11, Code 39 Full ASCII, Code 39 Tri optic, Code 128, Code 128Full ASCII, Coda bar, Code93, Discrete 2of 5, IATA, RSS variants, Codabar, Chinese 2 of 5, International general dimensional barcodes, eg Inteleaved2/5, Interleaved2of5 and China postal service code

Prompt modes: buzzer and LED indicator

Cable interface:

USB (standard): PS/2 and RS232 are selectable

External dimensions (L*W*H): 158*68*96mm

Weight: 170g (excluding cables)

Cable standard: straight line, 1m

Interface type: RJ-45 crystal head

Hull materials: ABS + PC

Temperature: 0 to 50℃

Working/storage: -40℃ to 60℃

Setting mode: manual (scanning and setting barcodes according to the sequence)

Safety regulations:

Laser safety class: EN60825-1, Class 1, state level-I laser safety standard
Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: this product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times

USB (standard): PS/2 and RS232 are selectable

Laser safety class: EN60825-1, Class 1, state level-I laser safety standard

Electrical safety: EN60950-1
