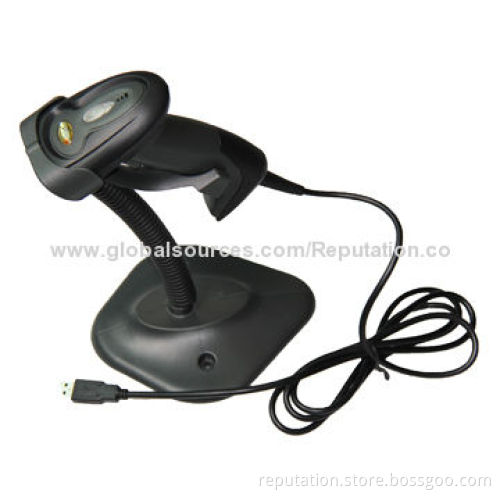

Wired Auto-induction Barcode Scanner with 3,000-12,000 Lux Light Intensity

Wired Auto-induction Barcode Scanner with 3,000-12,000 Lux Light Intensity

Get Latest Price

Payment Type:: Bank Transfer, Western Union, PayPal or Escrow

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Bank Transfer, Western Union, PayPal or Escrow

Product Description

Part number: YT760A

Light source type: visual lasing diode, the wavelength is 650nm

Trigger mode: manual and automatic optional (note: this automatic trigger mode is the technology researched and developed by our company independently and more convenient and reasonable than the automatic induction technology used in the National and International barcode field)

Scanning mode: single-line

Scanning speed: 100 ±2 times/second

Resolution: ≥4-mil

Printing contrast ratio: the lowest reflectivity difference is 30％

Bit error rate: 1/5,000 million

Input voltage: 5V DC ±0.25V

Power:

Working: 250mW
Momentary maximum: 325mW

Current: 50mA (working): 65mA (momentary maximum)

Standby current: ＜20mA

Light intensity: 3,000-12,000 Lux

Depth of field: 5-630mm

Scanning angle: ±60, 65, 42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, code 39, MSI, code11, code 39 full ASCII, code 39 TriOptic, code 128, code 128 full ASCII, codabar, code 93, Discrete2 of 5, IATA, RSS variants, codabar, Chinese2of5,

International general dimensional barcodes, eg Interleaved 2/5, 2 of 5 and China postal service code

Prompt modes: buzzer and LED indicator

Cable interface: USB (standard): PS/2 and RS232 are selectable

Weight: 170g (excluding cables)

Cable standard: straight line, 1m

Interface type: RJ-45 crystal head

Hull materials: ABS + PC

Temperature:
