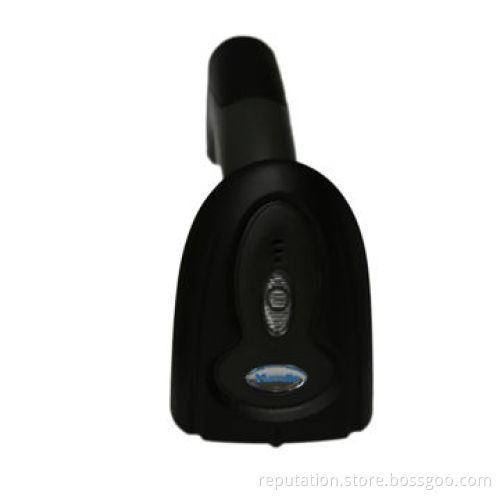

High Quality Wired CCD Barcode Reader Single-line Scanning

High Quality Wired CCD Barcode Reader Single-line Scanning

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Light source type: Optical Imaging; the wave length is 650mm.

Trigger mode: Manual

Scanning mode: Single-line scanning

Scanning speed: 25±2 times/s

Resolution: ≥5mil

Printing contrast ratio: The lowest reflectivity difference is 30％.

Bit error rate: 1/50million

Input voltage: 5VDC±0.25V

Power: 250mW (work): 500mW (momentary maximum)

Current: 50mA (work): 100mA (momentary maximum)

Standby current: ＜20mA

Light intensity: 3,000-12,000Lux

Depth of field: 10mm-630mm

Scanning angle: ±60°, ±65°, ±42° (left and right, front and back, rotation)

Decoding capacity: UPC/EAN/JAN, UPC/EAN with supplemental, UCC/EAN 128, Code 39, MSI, Code11 Code 39 Full ASCII, Code 39 TriOptic, Code 128, Code 128Full ASCII Codabar, Code93, Discrete2of5, IATA, RSSvariants, Codabar, Chinese2of5, International general dimensional barcodes for example: Inteleaved2/5, Interleaved2of5,China postal service code and so on

Promotion mode: Buzzer and LED indicator

Cable interface: USB (standard): PS/2 and RS232 are selectable

External dimensions L*W*H: 158mm*68mm*96mm

Weight: 170g

Cable standard: Straight line, 2m

Charging interface type: RJ-45 crystal head

Hull material: ABS + PC

Temperatures: 0℃ to 50℃ (work): -40℃ to 60℃ (storage)

Setting mode: Manual (scanning and setting barcodes according to the sequence)

Safety regulations: Laser safety class: EN60825-1, Class 1, state level-I laser safety standard

EMC: EN55022, EN55024

Electrical safety: EN60950-1

Packaging level: IP52

Anti-seismic capacity: This product can still work properly after falling down and being impacted on the concrete floor from the height of 3m for many times.
