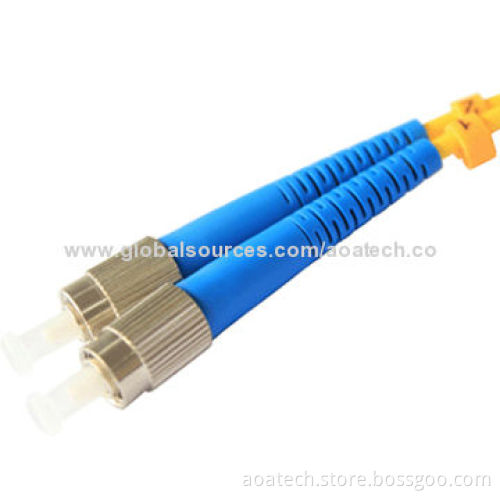

Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed
  • Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed
  • Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed
Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed
Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed

Fiber Patch Cord with High-return Loss and Low-insertion Loss, High-speed

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Overview:
    • Stands for fixed connection
    • Fixed by way of threaded barrel housing
    • Typical in test environments and for single-mode applications
    • Designed for use in high-vibration environments
    • Most popular connector used today
    • Can be seen in every area of communications environment, from telecoms distribution room to LAN closet FC has set standard for optical fiber connectors
  • Features:
    • Superior qualified standard: PC/UPC/APC polishing
    • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
    • 100% optic test (insertion loss and return loss)
    • 0.9, 2.0 and 3.0mm cable (optional)
    • Simplex/duplex (optional)
    • Comply to IEC mark
    • Flexible boot are available
    • PVC/LSZH
  • Applications:
    • High-speed and volume fiber-optic transmission systems
    • CATV network
    • LAN
    • Fiber-optic instrumentation
  • Specifications:
    • Types: single-mode (UPC, APC) and multiple mode (PC)
    • Insertion loss: ≤0.2, ≤0.2 and ≤0.3dB
    • Return loss: ≥50, ≥60 and ≥35dB
    • Repeatability: ≤0.1dB
    • Durability: ≥1,000mating
    • Operating temperature: -40 to 80°C
    • Tensile strength:
      • ≥90N: Φ3
      • ≥70N: Φ2
  • Stands for fixed connection
  • Fixed by way of threaded barrel housing
  • Typical in test environments and for single-mode applications
  • Designed for use in high-vibration environments
  • Most popular connector used today
  • Can be seen in every area of communications environment, from telecoms distribution room to LAN closet FC has set standard for optical fiber connectors
  • Superior qualified standard: PC/UPC/APC polishing
  • Compliant with Telcordia GR-326-core, TIA/EIA and IEC
  • 100% optic test (insertion loss and return loss)
  • 0.9, 2.0 and 3.0mm cable (optional)
  • Simplex/duplex (optional)
  • Comply to IEC mark
  • Flexible boot are available
  • PVC/LSZH
  • High-speed and volume fiber-optic transmission systems
  • CATV network
  • LAN
  • Fiber-optic instrumentation
  • Types: single-mode (UPC, APC) and multiple mode (PC)
  • Insertion loss: ≤0.2, ≤0.2 and ≤0.3dB
  • Return loss: ≥50, ≥60 and ≥35dB
  • Repeatability: ≤0.1dB
  • Durability: ≥1,000mating
  • Operating temperature: -40 to 80°C
  • Tensile strength:
    • ≥90N: Φ3
    • ≥70N: Φ2
  • ≥90N: Φ3
  • ≥70N: Φ2
