New 1 x 4 SDI Splitter, Supports 5 to 30V Wide Voltage Range

New 1 x 4 SDI Splitter, Supports 5 to 30V Wide Voltage Range

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

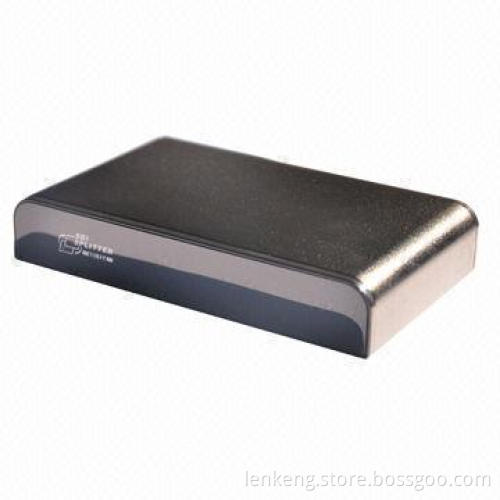

This compact SDI splitter is with a series of advancedtechnology

With build-in broadcast splitter chipset scheme and distributesSDI signal to 4 identical and synchronized SDI outputsperfectly

Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI(2.97Gbps) video format

LKV614 adopts aluminum alloy material to enhance the signalshield and achieve better video conversion effect

Benefits from the aluminum material quick heat dispelling,LKV614 can work stable 24x7 non-stop

LKV614 SDI splitter is with industrial level wide voltagedesign

Service lifespan can be up to 87,600 hours

5-30V wide voltage input

Users can connect the nearest power input and it worksstable

Lenkeng SDI splitter has build-in cable equalizer, reclockerand cable driver, supports the maximum cable length(Bleden-B6194A): SDI input and output length support: SDI for 400m,HD for 200m and 3G for 10m

Lenkeng SDI splitter is Plug-and-play (no software needed) andcan auto detect SDI signal

Indicator LED turns blue when correct SDI signal inputs, turnsred when no signal or incorrect signal inputs, allowing users tofind out problem easily
