Broadcast-quality HDMI® to SDI Converter, Dual-SDI Output, Full HD 1,080P Support

Broadcast-quality HDMI® to SDI Converter, Dual-SDI Output, Full HD 1,080P Support

Get Latest Price

Payment Type:: T/T, PayPal, L/C or Western Union

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

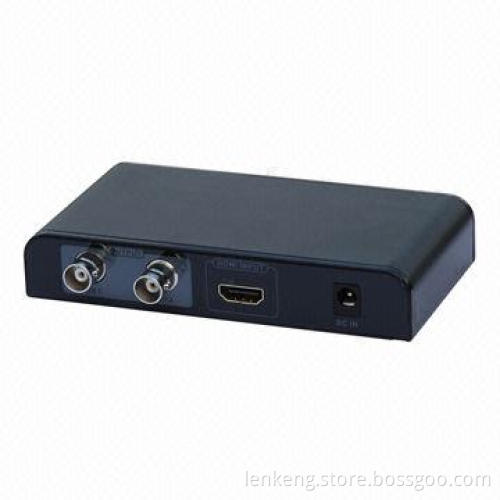

LKV389 HDMI® to SDI converter converts HDMI® audio/video embedded signal to a broadcast quality SDI signal and analog audio

SD-SDI, HD-SDI, 3G-SDI are supported

It can be used to display and edit in SDI devices

Full HDMI® resolution: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz

SDI formats: SD-SDI, HD-SDI, 3G-SDI, compliant with SMPTE-259/274/296/372/424/425/292

Operating at 2.970Gbps, 2.970/1.001Gbps, 1.485Gbps, 1.485/1.001Gbps and 270Mbps

Integrated audio de-embedding for a maximum of 8 channels

Converts HDMI® signal to SDI: 480i/576i, SD-SDI (SMPTE 259M-C, at bit rates of 270MB/second) 720P/1,080i, HD-SDI (SMPTE 292M, at bit rates of 1.485GB/second or 1.485/1.001GB/second, 1,080P, 3G-SDI (SMPTE 424M/425M-AB, at bit rates of 2.970 and 2.970/1.001GB/second)

Maximum data rate: 10.2Gbps

Easy to install

HDMI® bandwidth: 24-30-bit

HDMI® signal format: EIA/CEA-861D

SDI audio: SDI embedded audio up to 8 channels

Power in: 5V DC/1A

Chassis materials: aluminum + crystal plate

Dimensions (L x W x H): 130 x 68 x 23mm

Weight: 0.175kg
