Product Description

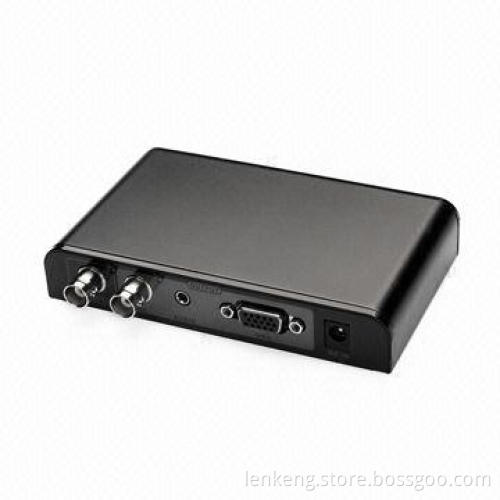

The SDI to SDI + VGA converter is designed to convert 3G/HD/SD-SDI to VGA based equipment such as projectors, plasma TV, and LCD screens and more

Furthermore, thanks to the loop-through SDI design, users are able to enjoy both SDI and VGA displays at the same time

Specifications:

Operating at 2.970, 2.970/1.001, 1.485, 1.485/1.001 and 270Mbps

Supports SMPTE 425M (level A and level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C

Auto video mode detection (3G/SD/HD)

Cascade multiple units for extending the signal longer distances

Simultaneous display with SDI and HDMI signal

Frequency bandwidth: 225MHz/link (HDMI 1.3)

SDI input:

SDI output (bypass):

VGA output:

Chassis materials: aluminum and crystal plate

Power adapter: 5V 1A, recommend 12V 1A if acceptable

Dimensions: 130 x 77 x 24mm

SD-SDI: 480i at 60Hz, 576I at 50Hz

HD-SDI: 720P at 50/60Hz, 1,080I at 50/60Hz, 1,080P at 24, 25, 30Hz

3G-SDI: 1,080P at 50/60Hz

SD-SDI: 480i at 60Hz, 576I at 50Hz

HD-SDI: 720P at 50/60Hz, 1,080I at 50/60Hz, 1,080P at 24, 25, 30Hz

3G-SDI: 1,080P at 50/60Hz

800 x 600 at 60Hz, 1,024 x 768 at 60Hz

1,280 x 720 at 60Hz, 1,360 x 768 at 60Hz, 1,920 x 1,080 at 60Hz
