Product Description

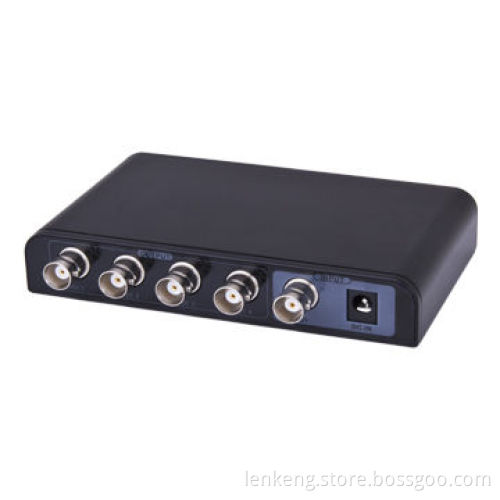

This compact SDI splitter is with a series of advanced technology

With built-in broadcast splitter chipset scheme and distributes SDI signal to 4 identical and synchronized SDI outputs perfectly

Supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) video format

LKV614 adopts aluminum alloy material to enhance the signal shield and achieve better video conversion effect

Benefits from the aluminum material quick heat dispelling, LKV614 can work stable 24x7 non-stop

LKV614 SDI splitter is with industrial level wide voltage design

Service lifespan can be up to 87600 hours

5-30V wide voltage input

Users can connect the nearest power input and it works stable

Lenkeng SDI splitter has build-in cable equalizer, reclocker and cable driver, supports the maximum cable length (Bleden-B6194A): SDI input and output length support: SDI for 400m, HD for 200m and 3G for 10m

Lenkeng SDI splitter is Plug-and-play (no software needed) and can auto detect SDI signal

Indicator LED turns blue when correct SDI signal inputs, turns red when no signal or incorrect signal inputs, allowing users to find out problem easily
