Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

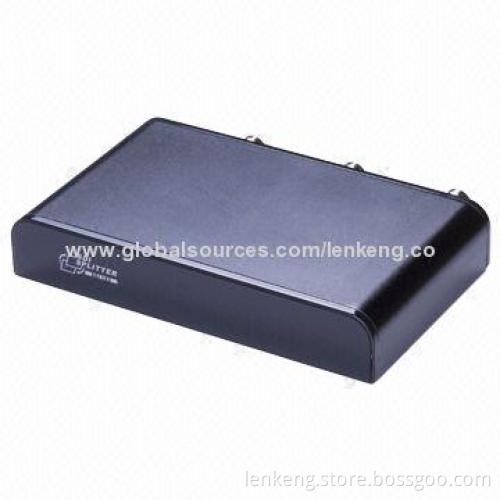

1 x 2 SDI splitter-LKV612

It distributes SDI signal to 2 simultaneous SDI output, can be widely applied in SDI broadcast room, no-linear editing field, CCTV security and training showroom and more

Input: 1 x SDI

Output: 2 x SDI

It supports SD-SDI (270Mbps), HD-SDI (1.485Gbps) and 3G-SDI (2.97Gbps) and 2 simultaneous SDI output

It provides equalized and re-clocked transmission and supports signal input and output distance of up to 400m for 3G-SDI, signal 200m for HD-SDI signal and 100m for 3G-SDI signal

It applies wide voltage inside design, supports 5-30V DC voltage input (lowest 5W) and is more suitable for projects

It is plug and play and can detect SDI signal automatically, indicator LED turns blue when correct SDI signal input turns red when no signal or incorrect signal inputs and allow project customers' to find the problem easily

SDI input/output: 480i/720p/1,080i at 60Hz, 576i/720p/1,080i at 50Hz, 1,080p at 24/25/30/50/60Hz
