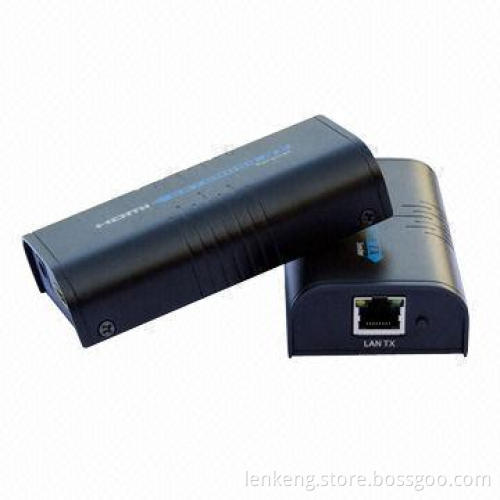

LKV373-B HDMI® Extenders, Over Cat5, 6, Up to 120m

LKV373-B HDMI® Extenders, Over Cat5, 6, Up to 120m

Get Latest Price

Payment Type:: Telegraphic Transfer (TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer (TT,T/T)

Product Description

HDMI® extender over LAN, up to 120m, can connect with cat5,6, 5e, 7

HDMI® sender, HDMI® receiver

1 sender can connect with multiple receiver

1 RX connect with many RX as splitter function

Materials: alumina based material + ABS + crystal panel

Introduction:

This is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted
It's the professional signal transmission system which combinesthe function of HDMI® signal conversion, reception andreduction and designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,Armamentarium, CCTV, multi-media instruction and more

Input port:

HDMI®: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz

Output port:

HDMI®: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080Pat 50/60Hz

The video color format supported: 24-bit/deep color 30-bit/deepcolor 36-bit

Audio format supported: DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD

Transmission rate supported: 10.2Gbps

HDMI® network extender:

Network splitter technology
Network extension technology

Support HDCP version: HDCP1.2

Input cable length: d5m (26AWG HDMI® 1.3 standardcable)

Output cable length: d5m (26AWG HDMI® 1.3 standardcable)

Connector type: RJ45

Interface: twisted pair Cat5e/6

Transmission distance: Cat6 up to 120m (Cat5e up to 100m)

Cabling standard: TIA/EIA568 B

This is the complete solution to solve the image mosaic, colordistortion, transmission failure and other problems when HDMI®signal long distance transmitted

It's the professional signal transmission system which combinesthe function of HDMI® signal conversion, reception andreduction and designed for high-quality HDMI® video signallong-range extension of display system project, such as big screencurtain wall advertising project, industrial automatic control,Armamentarium, CCTV, multi-media instruction and more

HDMI®: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576P at50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz

HDMI®: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080Pat 50/60Hz

Network splitter technology

Network extension technology
