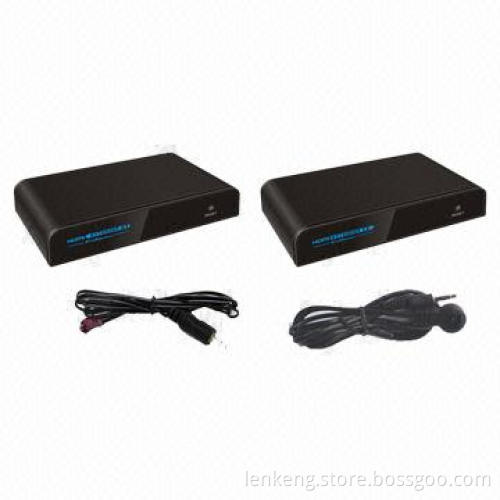

HDMI® Over Optical Fiber Extenders with IR Return Signal Up to 65,000ft for 1,080P

Get Latest Price

Payment Type:: Telegraphic Transfer in Advance (Advance TT, T/T)

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Features:

HDMI®: HDMI® version, compliant with HDCP
Follow up standard TCP/IP protocol
Transmit by single fiber-optic cable up to 20km at 1,080P
Apply the best video decode technology: MJPEG
HDMI® input: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576Pat 50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz
HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P can offer long-distance transport of HDMI® up to20km (65,000ft) with single mode fiber
Featuring HDMI® video resolution up to WUXGA 1,920x1,200Pand HDTV video resolution up to 1,080P
HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P also transports digital audio along with theHDMI®
The 20km HDMI® over fiber-optic extender consists of an allfiber connection eliminating the need for any copper connectionsbetween the transmitting and receiving devices
HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P are designed to not only transport the HD video andaudio, but also support the transmission of the display datachannel and High definition copy protection over the same opticalfiber
HDMI® over fiber-optic extender LKV378 is with IR function,which enables users to control the video source on the RX side
HDMI® output: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz,1,080P at 50/60Hz
The center wavelength: 1,310nm
Interface: SC
Fiber type: single module 0-20km (up to 65,000ft)
Chain loss: d14dB
Output fiber power: e11dBm
Receiving sensibility: d32dBm
Echo of wave loss: 15dBm
Power adapters: 2 pieces 5V DC/2A
Working power: 5W for each transmitter and receiver
Product dimensions: 13 x 8.5 x 2.4cm

HDMI®: HDMI® version, compliant with HDCP

Follow up standard TCP/IP protocol

Transmit by single fiber-optic cable up to 20km at 1,080P

Apply the best video decode technology: MJPEG

HDMI® input: 480i at 60Hz, 480P at 60Hz, 576i at 50Hz, 576Pat 50Hz, 720P at 50/60Hz, 1,080i at 50/60Hz, 1,080P at 50/60Hz

HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P can offer long-distance transport of HDMI® up to20km (65,000ft) with single mode fiber

Featuring HDMI® video resolution up to WUXGA 1,920x1,200Pand HDTV video resolution up to 1,080P

HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P also transports digital audio along with theHDMI®

The 20km HDMI® over fiber-optic extender consists of an allfiber connection eliminating the need for any copper connectionsbetween the transmitting and receiving devices

HDMI® optical extender with IR return signal up to 65,000ftfor 1,080P are designed to not only transport the HD video andaudio, but also support the transmission of the display datachannel and High definition copy protection over the same opticalfiber

HDMI® over fiber-optic extender LKV378 is with IR function,which enables users to control the video source on the RX side

HDMI® output: 480P at 60Hz, 576P at 50Hz, 720P at 50/60Hz,1,080P at 50/60Hz

The center wavelength: 1,310nm

Interface: SC

Fiber type: single module 0-20km (up to 65,000ft)

Chain loss: d14dB

Output fiber power: e11dBm

Receiving sensibility: d32dBm

Echo of wave loss: 15dBm

Power adapters: 2 pieces 5V DC/2A

Working power: 5W for each transmitter and receiver

Product dimensions: 13 x 8.5 x 2.4cm
