Product Description

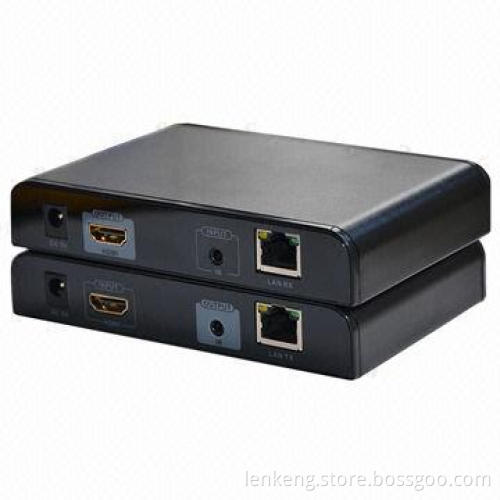

LKV373IR is designed to convert HDMI® signal to standardTCP/IP and transmit by Internet cable or LAN

With the advantage of TCP/IP standard, it can transmitHDMI® signal source from HD STB, DVD, Sony's PS3, HDMI®display card and more to HD projector, DLP, LCD, LED and otheraudiovisual equipment

Supported HDMI® input resolutions: 480i at 60Hz, 480P at60Hz, 576i at 50Hz, 576P at 50Hz, 720P at 50/60Hz, 1,080i at50/60Hz, 1,080P at 50/60Hz

Supported HDMI® output resolutions: 480 at 60, 576 at 50,720 at 50/60, 1,080P at 50/60Hz

HDCP compatible

Type of category cable: UTP/STP Cat5e/6

Transmission distance: extends HDMI® signals up to 100m atfull HD 1,080P by Cat5e cable/120m at full HD 1,080P by Cat 6cable

Ethernet bandwidth: 100Mbps

Power consumption: 3W (maximum) each

IR remote control: carrier frequency 38kHz

Extend 120m longer by adding one more Ethernet router

Power supply: 5V/1A

DDC signal: 5Vp-p (TTL)

Dimensions (L x W x H): 130 x 85 x 24mm

Package included:

1 x HDMI® extender sender

1 x HDMI® extender receiver

1 x IR blaster

1 x IR receiver

2 x power supplies (US, EU, UK, AU)

1 x user's manual
