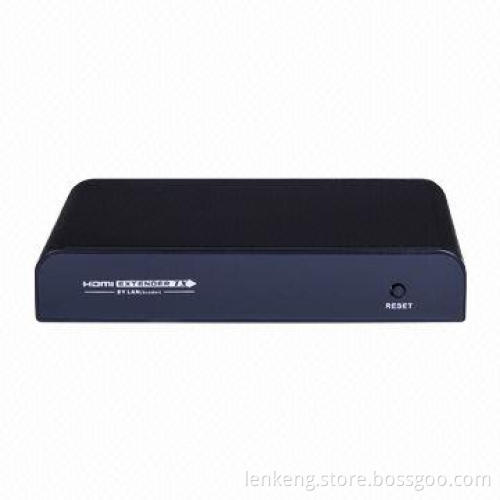

HDMI® Extender, Over TCP by Single Cat5e/6 Cable, Up to 120m with IR, 1,080P

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T, PayPal, L/C or Western Union

Product Description

Description:

Specifications:

HDMI® to Ethernet converter
It is designed to convert HDMI® to network data based onstandard TCP/IP protocol and transmit it by Cat5 cable or LAN to adistance maximum 120m away
IR extension is available for remote control

Features:

Apply M-JPEG technology to process image processing
Flexible and scalable HDMI® 1,080P high-quality videobroadcasting with Gigabit Ethernet LAN
Multi-casting and broadcasting architecture, adding moredisplays without adding LAN bandwidth loading
Supports point-to-point, point-to-many networkconfiguration
Pairs to be used, one converts HDMI® to IP, anotherconverts IP to HDMI®
IR frequency range 38kHz
LED panel: smart work status indicators to show the powerstatus and the signal status
High-definition audio supported: Dolby TrueHD, Dolby digitalplus and DTS-HD master audio plus LPCM
Each port supports HDMI® or DVI input
TMDS bandwidth: 10.2Gpbs
Ethernet bandwidth: 100Mpbs
HDMI® 1.3 and HDCP compliant
With ESD protection inside
Power supply and consumption: 5V/1A and TX: 3W, RX: 3W
Dimensions: 130 x 85 x 24mm

HDMI® extender over TCP/IP with 38kHz IR

This is the complete solution for HDMI® long distancetransmission

HDMI® to Ethernet converter

It is designed to convert HDMI® to network data based onstandard TCP/IP protocol and transmit it by Cat5 cable or LAN to adistance maximum 120m away

IR extension is available for remote control

Apply M-JPEG technology to process image processing

Flexible and scalable HDMI® 1,080P high-quality videobroadcasting with Gigabit Ethernet LAN

Multi-casting and broadcasting architecture, adding moredisplays without adding LAN bandwidth loading

Supports point-to-point, point-to-many networkconfiguration

Pairs to be used, one converts HDMI® to IP, anotherconverts IP to HDMI®

IR frequency range 38kHz

LED panel: smart work status indicators to show the powerstatus and the signal status

High-definition audio supported: Dolby TrueHD, Dolby digitalplus and DTS-HD master audio plus LPCM

Each port supports HDMI® or DVI input

TMDS bandwidth: 10.2Gpbs

Ethernet bandwidth: 100Mpbs

HDMI® 1.3 and HDCP compliant

With ESD protection inside

Power supply and consumption: 5V/1A and TX: 3W, RX: 3W

Dimensions: 130 x 85 x 24mm
