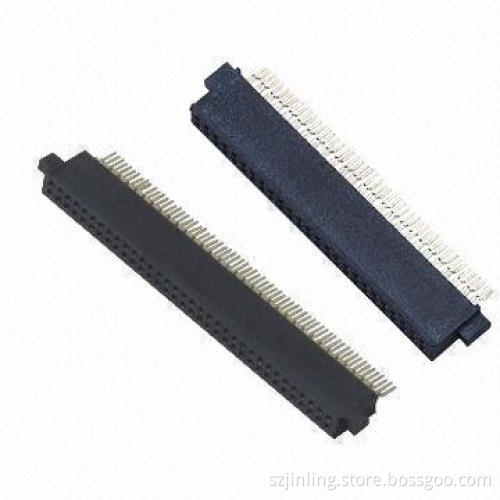

PCMC connector, female header, SMT and straight angle type position, 50P and 68P
- Payment Type:
- T/T
Your message must be between 20 to 2000 characters
Contact Now| Payment Type: | T/T |
|---|
- Current rating: 3AMP
- Operating temperature: -50 to 80°C
- Contact resistance: 20mΩ maximum
- Insulation resistance: 1000MΩ minimum
- Withstanding voltage: AC 1000V
- Insulator material: polyester (UL94v-0)
- Standard: LCP
- Contact material: phosphor bronze
- Contact plating: Au or Sn over 50U-inch Ni
- Number of pins per row: 50P/68P
- Contact plating: tin/gold flash/5U-inch gold/10U-inch gold/15U-inch gold/30U-inch gold
- Insulator material option: PBT/PA66/PA6T/PA46/LCP/special
- Connector type: straight angle/SMT
- All kinds of our products got the certification of RoHS
- We can take promptly shipment and give you the competitive price with high quality
- Rich experience in manufacturing
- Our products are extensively used in electronics and other industries
- Well-equipped testing facilities and strong technical force
- Our factory has passed the the ISO 9001:2000 certification and ISO 1400 certification
- We are very glad to make samples according to your graph paper and specification
-
