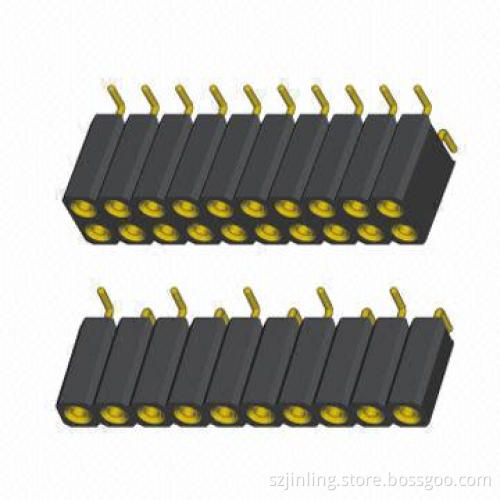

SMT Type Sip Sockets with 2.54mm Pitch, 7.0mm Plastic Height, Made of Gold or Tin Plating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Technical specifications:

Positions: 1 x 2 to 1 x 40/2 x 2 to 2 x 40P

Plastic height: 1.9/3.0/4.2/7.0mm

Flammability: PPS UL94V-0

Sleeve: C3604 brass

Contact clip: C17200 (6 finger)

Accepted pin: ¢0.7 to 0.9, 0.635mm

Forces: polished steel gauge ¢0.76mm

Insertion: 2N type

Withdrawal: 1N type

Mechanical life: 100 cycles (minimum)

Rated current: 3A

Contact resistance: 20 mΩ (maximum)

Dielectric resistance: 1,000V RMS (minimum)
