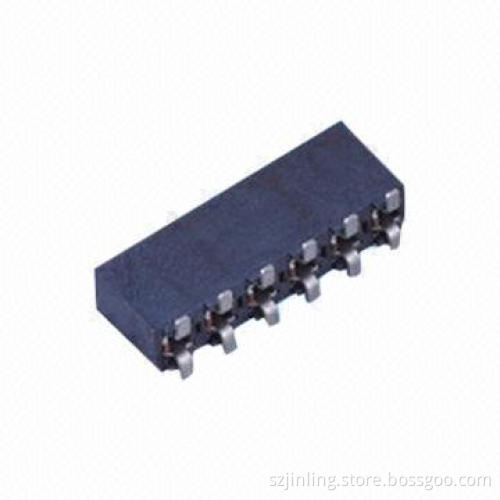

5.08mm Female Header Single Row, H = 8.91 x NP, SMT Type, 7.5AMP Current Rating

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Current rating: 7.5AMP
Operation temperature: -40 to 105°C
Maximum processing temperature: 230°C for 30 to 60 seconds, 260°C for 10 seconds
Contact resistance: 20mΩ (maximum)
Insulation resistance: 1,000mΩ (minimum)
Withstanding voltage: 500V AC
Insulator material: high-temperature
Thermoplastic (UL94v-0)
Standard: LCP
Contact material: brass
Contact plating: Au or SN over Ni

Ordering information:

No of pins per row: 1 x 20
Plastics height: 8.9mm
Contact plating: tin/gold flash/5U-inch gold/10U-inch gold/15U-inch gold/30U-inch gold
Insulator material option: PBT/PA66/PA6T/PA46/LCP/special
Connector type: straight/SMT

Our advantages:

All kinds of our products got the certification of RoHS
We can take promptly shipment and give you the competitive price with high-quality
Rich experience in manufacturing
Our products are extensively used in electronic and other industries
Well-equipped testing facilities and strong technical force
We are very glad to make samples according to your graph paper and specification

Current rating: 7.5AMP

Operation temperature: -40 to 105°C

Maximum processing temperature: 230°C for 30 to 60 seconds, 260°C for 10 seconds

Contact resistance: 20mΩ (maximum)

Insulation resistance: 1,000mΩ (minimum)

Withstanding voltage: 500V AC

Insulator material: high-temperature

Thermoplastic (UL94v-0)

Standard: LCP

Contact material: brass

Contact plating: Au or SN over Ni

No of pins per row: 1 x 20
