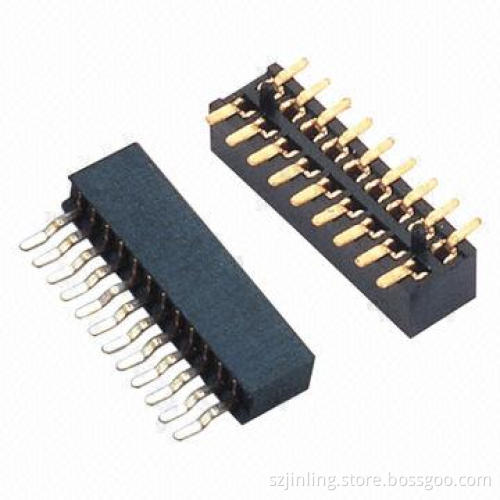

1.0mm pitch female header SMT type dual row height 2.1 with peg and cap

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	T/T

Product Description

Specifications:

Ordering information:

Number of pins per row: 2 x 50/2 to 100
Contact plating: tin/gold flash/5U inch gold/10U inch gold/15U inch gold/30U inch gold
Insulator material option: PBT/PA66/PA6T/PA46/LCP/special
Connector type: straight angle/right angle/SMT

Our advantages:

All kinds of our products got the certification of RoHS
We can take promptly shipment and give you the competitive price with high quality
Rich experience in manufacturing
Our products are extensively used in electronics and other industries
Well-equipped testing facilities and strong technical force

Current rating: 0.75AMP

Operation temperature: -40 to +105°C

Contact resistance: 20mΩ maximum

Insulation resistance: 1000MΩ minimum

Withstanding voltage: AC 1,000V

Insulator material: polyester (UL94V-0)

Standard: PA6T

Contact material: brass

Contact plating: Au or Sn over 50U inch Ni

Number of pins per row: 2 x 50/2 to 100

Contact plating: tin/gold flash/5U inch gold/10U inch gold/15U inch gold/30U inch gold

Insulator material option: PBT/PA66/PA6T/PA46/LCP/special
