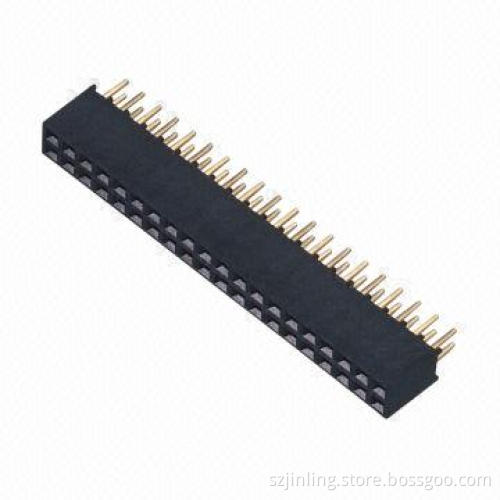

2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35
  • 2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35
  • 2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35
2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35
2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35

2.00mm Pitch Female Header, Dual Row with Straight Angle Height of 6.35

Get Latest Price
Payment Type:
T/T
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: T/T
Product Description
Product Description
  • Specifications:
    • Current rating: 1.5AMP
    • Operating temperatures: -40 to +105°C
    • Contact resistance: 20mΩ maximum
    • Insulation resistance: 1000M Ω minimum
    • Withstanding voltage: AC 1000V
    • Insulator material: polyester (UL94v-0)
    • Standard: PA6T
    • Contact material: brass
    • Contact plating: Au or Sn over 50U inch Ni
  • Ordering information:
    • Number of pins per row: 2 x 40P/2-80
    • Contact plating: tin/gold flash/5U inch gold/10U inch gold/15U inch gold/30U inch gold
    • Insulator material option: PBT/PA66/PA6T/PA46/LCP
    • Connector type: straight/right angle/SMT
  • Advantages:
    • Provision of professional services for the interconnect products and the best connection projects
    • Mainly produce the connectors on the Internet, storage, digital computer and the related products
    • Have strong research and development team of products and mold designs
    • Certificate: RoHS
    • Can make samples according to your graph paper and specifications
    Download more information about this product
  • Current rating: 1.5AMP
  • Operating temperatures: -40 to +105°C
  • Contact resistance: 20mΩ maximum
  • Insulation resistance: 1000M Ω minimum
  • Withstanding voltage: AC 1000V
  • Insulator material: polyester (UL94v-0)
  • Standard: PA6T
  • Contact material: brass
  • Contact plating: Au or Sn over 50U inch Ni
  • Number of pins per row: 2 x 40P/2-80
  • Contact plating: tin/gold flash/5U inch gold/10U inch gold/15U inch gold/30U inch gold
  • Insulator material option: PBT/PA66/PA6T/PA46/LCP
  • Connector type: straight/right angle/SMT
  • Provision of professional services for the interconnect products and the best connection projects
  • Mainly produce the connectors on the Internet, storage, digital computer and the related products
  • Have strong research and development team of products and mold designs
  • Certificate: RoHS
  • Can make samples according to your graph paper and specifications
