Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
  • Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
  • Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
  • Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
  • Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation
Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation

Best Price Cat6a Cable, 550MHz, High-performance, HDPE Insulation

Get Latest Price
Payment Type:
Telegraphic Transfer in Advance (Advance TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer in Advance (Advance TT, T/T)
Product Description
Product Description
  • Descriptions:
    • 4 x 2 x 23 AWG bare copper or CCA
    • HDPE insulation
    • PVC jacket
    • OEM orders are welcome
    • Construction: conductor 23AWG, copper 0.580 ± 0.01mm
    • Insulation: HDPE 1.04 ±0.06mm
    • Cores/pairs: 8/4
    • Sheath: 6.3 ±0.1mm PVC/LSZH/PVC (UV)/PE
  • Mechanical properties:
    • Elongation: 300% (minimum)
    • Temperature range: -20 up to 75°C
    • Tensile strength: 1.68kg/mm2 (minimum)
  • Electrical properties (at 20):
    • Conductor resistance: 9.38Ω/100m (maximum)
    • Resistance unbalance: 2% (maximum)
    • Insulation resistance: 150Ω/km (maximum)
    • Mutual capacitance: 5,600pF/100m (maximum)
    • Capacitance unbalance: 330pF/100m (maximum)
    • Impedance: 5,000 ±0.15 Ohms
    • Spark test: 2,000V
    • Velocity of propagation: 67%
    • All of products we offer are in top quality and competitive price
  • Packaging:
    • Packaging length: 305m/roll other length available according to clients' requirement
    • Inner packaging: wooden reel, plastic reel, and paper reel are available

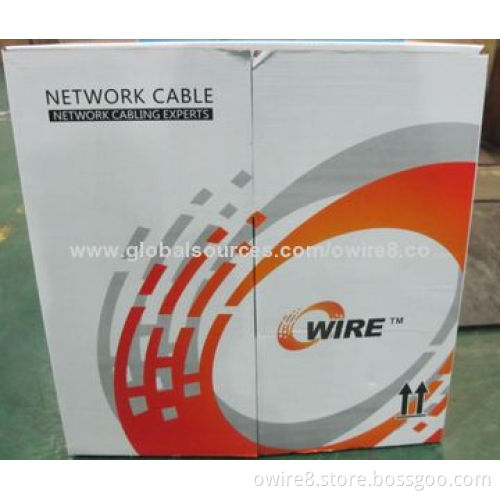

    • Outer packaging: carton box, pull box
    • Other packaging is available according to clients' requirement
  • 4 x 2 x 23 AWG bare copper or CCA
  • HDPE insulation
  • PVC jacket
  • OEM orders are welcome
  • Construction: conductor 23AWG, copper 0.580 ± 0.01mm
  • Insulation: HDPE 1.04 ±0.06mm
  • Cores/pairs: 8/4
  • Sheath: 6.3 ±0.1mm PVC/LSZH/PVC (UV)/PE
  • Elongation: 300% (minimum)
  • Temperature range: -20 up to 75°C
  • Tensile strength: 1.68kg/mm2 (minimum)
  • Conductor resistance: 9.38Ω/100m (maximum)
  • Resistance unbalance: 2% (maximum)
  • Insulation resistance: 150Ω/km (maximum)
  • Mutual capacitance: 5,600pF/100m (maximum)
  • Capacitance unbalance: 330pF/100m (maximum)
  • Impedance: 5,000 ±0.15 Ohms
  • Spark test: 2,000V
  • Velocity of propagation: 67%
  • All of products we offer are in top quality and competitive price
  • Packaging length: 305m/roll other length available according to clients' requirement
  • Inner packaging: wooden reel, plastic reel, and paper reel are available
  • Outer packaging: carton box, pull box
  • Other packaging is available according to clients' requirement
