Product Description

Description:

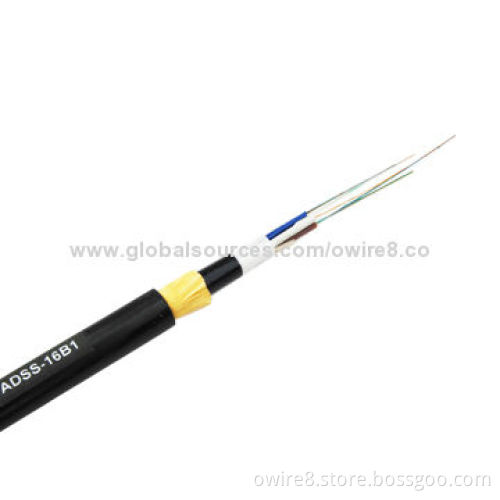

ADSS cable is loose tube stranded
Fibers, 125μm, are positioned into a loose tube made of high modulus plastics
The tubes are filled with a water-resistant filling compound
The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core
After the cable core is filled with filling compound it is covered with thin PE (polyethylene) inner sheath
After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

Characteristics:

Can be installed without shutting off the power
Excellent AT performance, the maximum inductive at the operating point of AT sheath can reach 25kV
Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops
Large span lengths and the largest span is over 1,000m
Good performance of tensile strength and temperature
The design life span is 30 years

Application:

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied
The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans
Standards:
ADSS cable complies with standard IEEE P 1222 as well as IEC 60794-1
Storage
Operating temperatures: -40 to 70℃

ADSS cable is loose tube stranded

Fibers, 125μm, are positioned into a loose tube made of high modulus plastics

The tubes are filled with a water-resistant filling compound

The tubes (and fillers) are stranded around a FRP (Fiber Reinforced Plastic) as a non-metallic central strength member into a compact and circular cable core

After the cable core is filled with filling compound it is covered with thin PE (polyethylene) inner sheath

After stranded layer of aramid yarns are applied over the inner sheath as strength member, the cable is completed with PE or AT (anti-tracking) outer sheath

Can be installed without shutting off the power

Excellent AT performance, the maximum inductive at the operating point of AT sheath can reach 25kV

Light weight and small diameter reducing the load caused by ice and wind and the load on towers and backprops

Large span lengths and the largest span is over 1,000m

Good performance of tensile strength and temperature

The design life span is 30 years

The actual status of overhead power lines is taken into full consideration when ADSS cable is being designed. For overhead power lines under 110kV, PE outer sheath is applied. FOR power lines equal to or over 110kV, AT outer sheath is applied

The dedicate design of aramid quantity and stranding process can satisfy the demand on various spans

Standards:

ADSS cable complies with standard IEEE P 1222 as well as IEC 60794-1

Storage

Operating temperatures: -40 to 70℃
