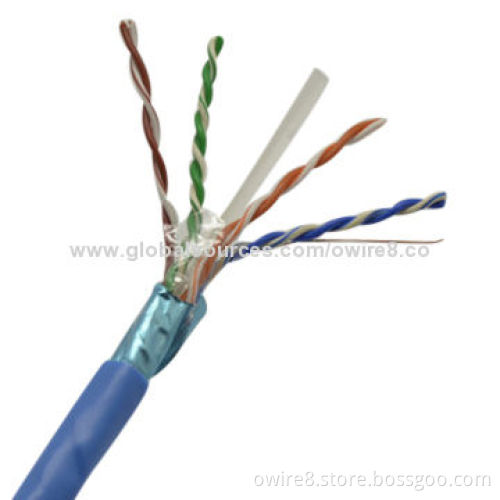

Cat6 FTP Cable, 23AWG OEM Orders Welcomed

Get Latest Price

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	Telegraphic Transfer in Advance (Advance TT, T/T)

Product Description

Descriptions:

Mechanical properties:

Packing:

4 x 2 x 23AWG copper or CCA

HDPE insulation

PVC jacket

OEM orders are welcome

Construction: conductor 23AWG & copper 0.565 ±0.02mm

Insulation HDPE: 1.04 ±0.06mm

Cores/pairs: 8/4

Sheath: 6.3 ±0.1mm, PVC/LSZH/PVC (UV)/PE

Elongation: 300% (minimum)

Temperature range: -20 to 75°C

Tensile strength: 1.68kg/mm² (minimum)

Electrical properties (at 20°C)

Conductor resistance: 9.38Ω/100m (maximum)

Resistance unbalance: 2% (maximum)

Insulation resistance: 150Ω /km (maximum)

Mutual capacitance: 5,600pF/100m (maximum)

Capacitance unbalance: 330pF/100m (maximum)

Impedance: 250 ± 0.15Ω

Spark test: 2,000V

Velocity of propagation: 67%

Warmly welcome to our store: YINGBANG cable

All of products we offer are top quality and competitive price

Length: 305m/roll other length available according to clients' request

Inner: wooden reel, plastic reel, and paper reel available

Outer: carton box, pull box

Other packing available according to clients' request
