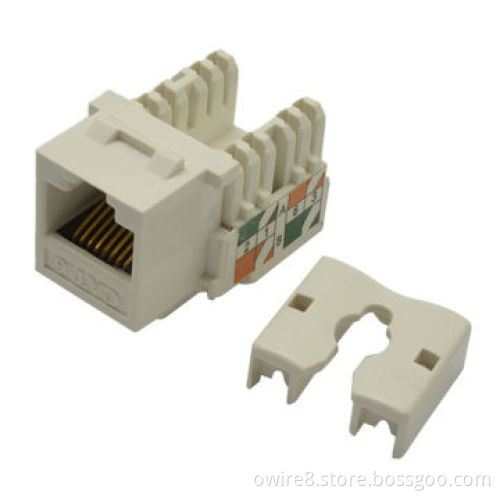

Cat5e modular UTP adapter to RJ45 plugNew

Cat5e modular UTP adapter to RJ45 plugNew

Get Latest Price

Payment Type:: L/C or T/T

Quantity:

Your message must be between 20 to 2000 characters

Contact Now

Basic Info

Payment Type:	L/C or T/T

Product Description

Features:

Meets TIA/EIA-568-A and TIA/EIA-568-B category 5e requirements, TIA/EIA TSB-40, IEC generic cabling standard 11801, CENELEC generic cabling standard EN50173
Angle: 90°, fit for loading a full STP/UTP 24/48 ports patch panel
Cat5 and Cat6 are available

Specifications:

Electrical:
- According to UL 1863
- Current rating: 1.5AMP (maximum)
- Voltage rating: 150V
- Contact resistance: 20mΩ
- Insulation resistance: 500mΩ
- Dielectric withstanding voltage: 1,000V AC RMS, 60Hz 1 minute
Mechanical:
- Housing: PC UL94V-0
- IDC: PC UL94V-0, accepts 22-26 AWG solid wire
- PCB: FR4 1.6mm (0.04 inch) thickness, 2 layers
- Contact: PC Ul94V-0, 0.45mm (0.018 inch) diameter phosphor bronze with 3 to 50U gold plating range on contact area

Meets TIA/EIA-568-A and TIA/EIA-568-B category 5e requirements, TIA/EIA TSB-40, IEC generic cabling standard 11801, CENELEC generic cabling standard EN50173

Angle: 90°, fit for loading a full STP/UTP 24/48 ports patch panel

Cat5 and Cat6 are available

Electrical:

According to UL 1863
Current rating: 1.5AMP (maximum)
Voltage rating: 150V
Contact resistance: 20mΩ
Insulation resistance: 500mΩ
Dielectric withstanding voltage: 1,000V AC RMS, 60Hz 1 minute

Mechanical:

Housing: PC UL94V-0
IDC: PC UL94V-0, accepts 22-26 AWG solid wire
PCB: FR4 1.6mm (0.04 inch) thickness, 2 layers
Contact: PC Ul94V-0, 0.45mm (0.018 inch) diameter phosphor bronze with 3 to 50U gold plating range on contact area

According to UL 1863

Current rating: 1.5AMP (maximum)

Voltage rating: 150V

Contact resistance: 20mΩ

Insulation resistance: 500mΩ

Dielectric withstanding voltage: 1,000V AC RMS, 60Hz 1 minute

Housing: PC UL94V-0

IDC: PC UL94V-0, accepts 22-26 AWG solid wire

PCB: FR4 1.6mm (0.04 inch) thickness, 2 layers

Contact: PC Ul94V-0, 0.45mm (0.018 inch) diameter phosphor bronze with 3 to 50U gold plating range on contact area
