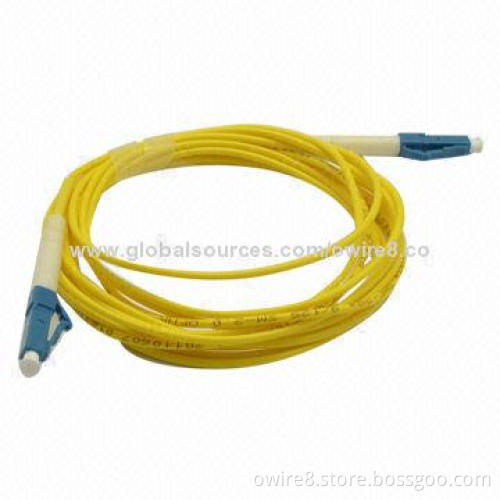

Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
  • Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD
Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD

Fiber-optic Cable/Patch Cord, LC/LC from Factory, DSM/MM Mode, 3.0/2.0mm OD

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Weight: 44g
    • Mode: DSM/MM
    • Fiber diameter: 2.0, 3.0mm
    • Good standard parts interchangeability
    • Connector type: LC-LC
    • Mode: single mode
    • Polishing: PC
    • Insertion loss: ≤0.2dB
    • Return loss: ≥52dB
    • Exchangeability: ≤0.2dB
    • Repeatability: ≤0.2dB/1,000 times
    • Operating wavelength: 850, 1,310, 1,550nm
    • Operating temperature: -30 - +75°C
    • Storage temperature: 40 - +85°C
    • Cable OD: 3.0/2.0mm
    • Cable materials: OFNR, LDZH and polarization maintaining
    • Mode: 9/125
    • Fiber cable type: PVC 3.0mm
    • RoHS/CE/FCC: yes
  • Features:
    • Compliant with: ANSI, Bekkcore, TIA/EIA, IEC standards
    • Low-insertion loss and high-return loss
    • Excellent repeatability and changeability
    • Simplex and duplex available
    • With ceramic ferrules
    • PVC and LSNH cable option
    • Optical performance 100% factory test
  • Applications:
    • Telecommunication network
    • CATV network
    • Active device termination
    • Local area network
    • Data processing networking
  • Weight: 44g
  • Mode: DSM/MM
  • Fiber diameter: 2.0, 3.0mm
  • Good standard parts interchangeability
  • Connector type: LC-LC
  • Mode: single mode
  • Polishing: PC
  • Insertion loss: ≤0.2dB
  • Return loss: ≥52dB
  • Exchangeability: ≤0.2dB
  • Repeatability: ≤0.2dB/1,000 times
  • Operating wavelength: 850, 1,310, 1,550nm
  • Operating temperature: -30 - +75°C
  • Storage temperature: 40 - +85°C
  • Cable OD: 3.0/2.0mm
  • Cable materials: OFNR, LDZH and polarization maintaining
  • Mode: 9/125
  • Fiber cable type: PVC 3.0mm
  • RoHS/CE/FCC: yes
  • Compliant with: ANSI, Bekkcore, TIA/EIA, IEC standards
  • Low-insertion loss and high-return loss
  • Excellent repeatability and changeability
  • Simplex and duplex available
  • With ceramic ferrules
  • PVC and LSNH cable option
  • Optical performance 100% factory test
  • Telecommunication network
  • CATV network
  • Active device termination
  • Local area network
  • Data processing networking
