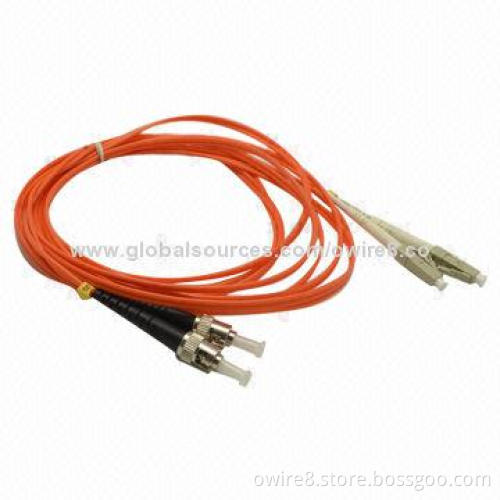

LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
  • LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available
LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available

LC/ST Fiber-optic Patch Cable, Simplex and Duplex Available

Get Latest Price
Payment Type:
Telegraphic Transfer (TT, T/T)
Quantity:

Your message must be between 20 to 2000 characters

Contact Now
Basic Info
Basic Info
Payment Type: Telegraphic Transfer (TT,T/T)
Product Description
Product Description
  • Specifications:
    • Unit: PC, APC, UPC
    • Ferrule material: ceramic
    • Spectral bandwidth: 60nm
    • Insertion lose: <0.2/0.2/0.2dB
    • Return lose: >45/60/50dB
    • Central wavelength: 1,310/1,550nm
    • Fiber type: single-mode fiber (9/125µm)
    • 500 continuous repeatability: Δ0.2dB
    • Anti-tensile: 8N
    • Working temperature: -20-+60°C
    • Storage temperature: -40-+85°C
    • Tolerable humidity without package: 90% RH
  • Mechanical properties:
    • Swap: <0.1dB
    • Vibration: <0.1dB (5-50Hz, 1.5mm)
    • Anti-tensile strength: <0.1dB (tensile 0-15kg)
  • Environmental properties:
    • High-temperature (continuous working for 50 hours under temperature +85°C): <0.2dB
    • Low-temperature (continuous working for 50 hours under temperature -40°C): <0.2dB
    • Temperature cycling (-40-+85°C, 5 cycles): <0.2dB
    • Humidity (-25-+65°C, 93% RH): <0.2dB
  • Features:
    • Compliant with: ANSI, Bekkcore, TIA/EIA, IEC standards
    • Low-insertion loss and high-return loss
    • Excellent repeatability and changeability
    • Simplex and duplex available
    • With ceramic ferrules
    • PVC and LSNH cable options
    • Optical performance 100% factory test
  • Applications:
    • Telecommunication network
    • CATV network
    • Active device termination
    • Local area network
    • Data processing networking
  • Unit: PC, APC, UPC
  • Ferrule material: ceramic
  • Spectral bandwidth: 60nm
  • Insertion lose: <0.2/0.2/0.2dB
  • Return lose: >45/60/50dB
  • Central wavelength: 1,310/1,550nm
  • Fiber type: single-mode fiber (9/125µm)
  • 500 continuous repeatability: Δ0.2dB
  • Anti-tensile: 8N
  • Working temperature: -20-+60°C
  • Storage temperature: -40-+85°C
  • Tolerable humidity without package: 90% RH
  • Swap: <0.1dB
  • Vibration: <0.1dB (5-50Hz, 1.5mm)
  • Anti-tensile strength: <0.1dB (tensile 0-15kg)
  • High-temperature (continuous working for 50 hours under temperature +85°C): <0.2dB
  • Low-temperature (continuous working for 50 hours under temperature -40°C): <0.2dB
  • Temperature cycling (-40-+85°C, 5 cycles): <0.2dB
  • Humidity (-25-+65°C, 93% RH): <0.2dB
  • Compliant with: ANSI, Bekkcore, TIA/EIA, IEC standards
  • Low-insertion loss and high-return loss
  • Excellent repeatability and changeability
  • Simplex and duplex available
  • With ceramic ferrules
  • PVC and LSNH cable options
  • Optical performance 100% factory test
  • Telecommunication network
  • CATV network
  • Active device termination
  • Local area network
  • Data processing networking
